ASD鋁合金加工專用鉆頭--SA基準型

O5ASD-SA

ASD 內冷整體硬質合金鋁用螺旋槽鉆頭5×D 基準型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角、刀尖形式、排屑槽形式、涂層等要素針對各系列特點進行分別設計，確保各系列達到最優的加工效果。

產品特色
產品尺寸
加工視頻

SA系列基準型鋁用螺旋槽鉆頭

鋁用無涂層

產品特點:

□ 針對鋁合金加工的獨特性，設計了專用的鉆尖角和排屑槽。

采用鋁合金專用的鉆尖，容屑槽比較大，使加工時斷屑好，排屑通暢，不容易產生繞屑。

□ 排屑槽做了特殊的拋光處理

排屑槽做過特殊的拋光處理，加工時不易產生積屑瘤，保證排屑的通暢性。

□ 銑刀柄設計，加工精度高

采用銑刀相同的柄部設計，提高夾持精度，以實現高精度鉆孔。

□ 高精度刃徑和鋁合金專用韌帶和鉆尖，保證孔的精度、光潔度好。

選擇適合鋁合金加工的韌帶和120°鉆尖角，較小的橫刃長度，提高鉆頭定心精度，刃徑公差在m7以內，加工孔的精度高，且光潔度好。

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

◎

○

◎

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷

尺寸范圍：

D=2.00~20.00mm

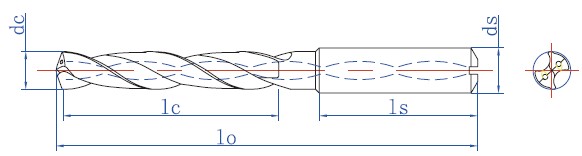

基準型訂貨號	刃徑	槽長	柄徑	柄長	總長
SA系列（鋁用無涂層）	dc	lc	ds	ls	lo
O5ASD0200SA	2.00	15	3	28	46
O5ASD0210SA	2.10	15	3	28	46
O5ASD0220SA	2.20	15	3	28	46
O5ASD0230SA	2.30	15	3	28	46
O5ASD0240SA	2.40	15	3	28	46
O5ASD0250SA	2.50	15	3	28	46
O5ASD0260SA	2.60	20	3	28	51
O5ASD0270SA	2.70	20	3	28	51
O5ASD0280SA	2.80	20	3	28	51
O5ASD0290SA	2.90	20	3	28	51
O5ASD0300SA	3.00	20	3	28	51
O5ASD0310SA	3.10	26	4	28	59
O5ASD0320SA	3.20	26	4	28	59
O5ASD0330SA	3.30	26	4	28	59
O5ASD0340SA	3.40	26	4	28	59
O5ASD0350SA	3.50	26	4	28	59
O5ASD0360SA	3.60	26	4	28	59
O5ASD0370SA	3.70	26	4	28	59
O5ASD0380SA	3.80	26	4	28	59
O5ASD0390SA	3.90	26	4	28	59
O5ASD0400SA	4.00	26	4	28	59
O5ASD0410SA	4.10	35	6	36	76
O5ASD0420SA	4.20	35	6	36	76
O5ASD0430SA	4.30	35	6	36	76
O5ASD0440SA	4.40	35	6	36	76
O5ASD0450SA	4.50	35	6	36	76
O5ASD0460SA	4.60	35	6	36	76
O5ASD0470SA	4.70	35	6	36	76
O5ASD0480SA	4.80	35	6	36	76
O5ASD0490SA	4.90	35	6	36	76
O5ASD0500SA	5.00	35	6	36	76
O5ASD0510SA	5.10	39	6	36	80
O5ASD0520SA	5.20	39	6	36	80
O5ASD0530SA	5.30	39	6	36	80
O5ASD0540SA	5.40	39	6	36	80
O5ASD0550SA	5.50	39	6	36	80
O5ASD0560SA	5.60	39	6	36	80
O5ASD0570SA	5.70	39	6	36	80
O5ASD0580SA	5.80	39	6	36	80
O5ASD0590SA	5.90	39	6	36	80
O5ASD0600SA	6.00	39	6	36	80
O5ASD0610SA	6.10	48	8	36	89
O5ASD0620SA	6.20	48	8	36	89
O5ASD0630SA	6.30	48	8	36	89
O5ASD0640SA	6.40	48	8	36	89
O5ASD0650SA	6.50	48	8	36	89
O5ASD0660SA	6.60	48	8	36	89
O5ASD0670SA	6.70	48	8	36	89
O5ASD0680SA	6.80	48	8	36	89
O5ASD0690SA	6.90	48	8	36	89
O5ASD0700SA	7.00	48	8	36	89
O5ASD0710SA	7.10	52	8	36	93
O5ASD0720SA	7.20	52	8	36	93
O5ASD0730SA	7.30	52	8	36	93
O5ASD0740SA	7.40	52	8	36	93
O5ASD0750SA	7.50	52	8	36	93
O5ASD0760SA	7.60	52	8	36	93
O5ASD0770SA	7.70	52	8	36	93
O5ASD0780SA	7.80	52	8	36	93
O5ASD0790SA	7.90	52	8	36	93
O5ASD0800SA	8.00	52	8	36	93
O5ASD0810SA	8.10	61	10	40	106
O5ASD0820SA	8.20	61	10	40	106
O5ASD0830SA	8.30	61	10	40	106
O5ASD0840SA	8.40	61	10	40	106
O5ASD0850SA	8.50	61	10	40	106
O5ASD0860SA	8.60	61	10	40	106
O5ASD0870SA	8.70	61	10	40	106
O5ASD0880SA	8.80	61	10	40	106
O5ASD0890SA	8.90	61	10	40	106
O5ASD0900SA	9.00	61	10	40	106
O5ASD0910SA	9.10	65	10	40	110
O5ASD0920SA	9.20	65	10	40	110
O5ASD0930SA	9.30	65	10	40	110
O5ASD0940SA	9.40	65	10	40	110
O5ASD0950SA	9.50	65	10	40	110
O5ASD0960SA	9.60	65	10	40	110
O5ASD0970SA	9.70	65	10	40	110
O5ASD0980SA	9.80	65	10	40	110
O5ASD0990SA	9.90	65	10	40	110
O5ASD1000SA	10.00	65	10	40	110
O5ASD1010SA	10.10	74	12	45	124
O5ASD1020SA	10.20	74	12	45	124
O5ASD1030SA	10.30	74	12	45	124
O5ASD1040SA	10.40	74	12	45	124
O5ASD1050SA	10.50	74	12	45	124
O5ASD1060SA	10.60	74	12	45	124
O5ASD1070SA	10.70	74	12	45	124
O5ASD1080SA	10.80	74	12	45	124
O5ASD1090SA	10.90	74	12	45	124
O5ASD1100SA	11.00	74	12	45	124
O5ASD1110SA	11.10	78	12	45	128
O5ASD1120SA	11.20	78	12	45	128
O5ASD1130SA	11.30	78	12	45	128
O5ASD1140SA	11.40	78	12	45	128
O5ASD1150SA	11.50	78	12	45	128
O5ASD1160SA	11.60	78	12	45	128
O5ASD1170SA	11.70	78	12	45	128
O5ASD1180SA	11.80	78	12	45	128
O5ASD1190SA	11.90	78	12	45	128
O5ASD1200SA	12.00	78	12	45	128
O5ASD1210SA	12.10	87	14	45	137
O5ASD1220SA	12.20	87	14	45	137
O5ASD1230SA	12.30	87	14	45	137
O5ASD1240SA	12.40	87	14	45	137
O5ASD1250SA	12.50	87	14	45	137
O5ASD1260SA	12.60	87	14	45	137
O5ASD1270SA	12.70	87	14	45	137
O5ASD1280SA	12.80	87	14	45	137
O5ASD1290SA	12.90	87	14	45	137
O5ASD1300SA	13.00	87	14	45	137
O5ASD1310SA	13.10	91	14	45	141
O5ASD1320SA	13.20	91	14	45	141
O5ASD1330SA	13.30	91	14	45	141
O5ASD1340SA	13.40	91	14	45	141
O5ASD1350SA	13.50	91	14	45	141
O5ASD1360SA	13.60	91	14	45	141
O5ASD1370SA	13.70	91	14	45	141
O5ASD1380SA	13.80	91	14	45	141
O5ASD1390SA	13.90	91	14	45	141
O5ASD1400SA	14.00	91	14	45	141
O5ASD1410SA	14.10	100	16	48	153
O5ASD1420SA	14.20	100	16	48	153
O5ASD1430SA	14.30	100	16	48	153
O5ASD1440SA	14.40	100	16	48	153
O5ASD1450SA	14.50	100	16	48	153
O5ASD1460SA	14.60	100	16	48	153
O5ASD1470SA	14.70	100	16	48	153
O5ASD1480SA	14.80	100	16	48	153
O5ASD1490SA	14.90	100	16	48	153
O5ASD1500SA	15.00	100	16	48	153
O5ASD1510SA	15.10	104	16	48	157
O5ASD1520SA	15.20	104	16	48	157
O5ASD1530SA	15.30	104	16	48	157
O5ASD1540SA	15.40	104	16	48	157
O5ASD1550SA	15.50	104	16	48	157
O5ASD1560SA	15.60	104	16	48	157
O5ASD1570SA	15.70	104	16	48	157
O5ASD1580SA	15.80	104	16	48	157
O5ASD1590SA	15.90	104	16	48	157
O5ASD1600SA	16.00	104	16	48	157
O5ASD1610SA	16.10	113	18	48	166
O5ASD1620SA	16.20	113	18	48	166
O5ASD1630SA	16.30	113	18	48	166
O5ASD1640SA	16.40	113	18	48	166
O5ASD1650SA	16.50	113	18	48	166
O5ASD1660SA	16.60	113	18	48	166
O5ASD1670SA	16.70	113	18	48	166
O5ASD1680SA	16.80	113	18	48	166
O5ASD1690SA	16.90	113	18	48	166
O5ASD1700SA	17.00	113	18	48	166
O5ASD1710SA	17.10	117	18	48	170
O5ASD1720SA	17.20	117	18	48	170
O5ASD1730SA	17.30	117	18	48	170
O5ASD1740SA	17.40	117	18	48	170
O5ASD1750SA	17.50	117	18	48	170
O5ASD1760SA	17.60	117	18	48	170
O5ASD1770SA	17.70	117	18	48	170
O5ASD1780SA	17.80	117	18	48	170
O5ASD1790SA	17.90	117	18	48	170
O5ASD1800SA	18.00	117	18	48	170
O5ASD1850SA	18.50	126	20	50	181
O5ASD1860SA	18.60	126	20	50	181
O5ASD1870SA	18.70	126	20	50	181
O5ASD1880SA	18.80	126	20	50	181
O5ASD1900SA	19.00	126	20	50	181
O5ASD1910SA	19.10	130	20	50	185
O5ASD1920SA	19.20	130	20	50	185
O5ASD1930SA	19.30	130	20	50	185
O5ASD1940SA	19.40	130	20	50	185
O5ASD1950SA	19.50	130	20	50	185
O5ASD1960SA	19.60	130	20	50	185
O5ASD1970SA	19.70	130	20	50	185
O5ASD1980SA	19.80	130	20	50	185
O5ASD1990SA	19.90	130	20	50	185
O5ASD2000SA	20.00	130	20	50	185
