ASD鋁合金加工專用鉆頭--SD高性能型

3ASD-SD

ASD 整體硬質合金鋁用螺旋槽鉆頭3×D 高性能型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角、刀尖形式、排屑槽形式、涂層等要素針對各系列特點進行分別設計，確保各系列達到最優的加工效果。

產品特色
產品尺寸
加工視頻

SD系列基準型鋁用螺旋槽鉆頭

鋁用DLC涂層

產品特點:

□ 針對鋁合金加工的獨特性，設計了專用的鉆尖角和排屑槽。

采用鋁合金專用的鉆尖，容屑槽比較大，使加工時斷屑好，排屑通暢，不容易產生繞屑。

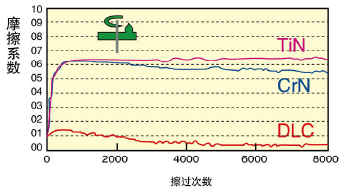

□ DLC涂層摩擦系數小，鋁金屬不易熔敷

采用具有高硬度，低摩擦系數，耐磨損優異DLC（類金剛石）涂層，可實現鋁合金的干式加工，刀具壽命較一般鉆頭高出很多。

□ 銑刀柄設計，加工精度高

采用銑刀相同的柄部設計，提高夾持精度，以實現高精度鉆孔。

□ 優良的切削排出性

通過采用低摩擦系數的DLC涂層與特殊溝槽形狀，切屑附著少，不易堵塞，所以可實現5D的無階式加工，并且不易產生切屑瘤，加工非常穩定。

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

◎

○

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷

尺寸范圍：

D=2.00~20.00mm

高性能型訂貨號	刃徑	槽長	柄徑	柄長	總長
SD系列（鋁用DLC涂層）	dc	lc	ds	ls	lo
3ASD0200SD	2.00	10	3	28	41
3ASD0210SD	2.10	10	3	28	41
3ASD0220SD	2.20	10	3	28	41
3ASD0230SD	2.30	10	3	28	41
3ASD0240SD	2.40	10	3	28	41
3ASD0250SD	2.50	10	3	28	41
3ASD0260SD	2.60	14	3	28	45
3ASD0270SD	2.70	14	3	28	45
3ASD0280SD	2.80	14	3	28	45
3ASD0290SD	2.90	14	3	28	45
3ASD0300SD	3.00	14	3	28	45
3ASD0310SD	3.10	18	4	28	51
3ASD0320SD	3.20	18	4	28	51
3ASD0330SD	3.30	18	4	28	51
3ASD0340SD	3.40	18	4	28	51
3ASD0350SD	3.50	18	4	28	51
3ASD0360SD	3.60	18	4	28	51
3ASD0370SD	3.70	18	4	28	51
3ASD0380SD	3.80	18	4	28	51
3ASD0390SD	3.90	18	4	28	51
3ASD0400SD	4.00	18	4	28	51
3ASD0410SD	4.10	23	6	36	64
3ASD0420SD	4.20	23	6	36	64
3ASD0430SD	4.30	23	6	36	64
3ASD0440SD	4.40	23	6	36	64
3ASD0450SD	4.50	23	6	36	64
3ASD0460SD	4.60	23	6	36	64
3ASD0470SD	4.70	23	6	36	64
3ASD0480SD	4.80	23	6	36	64
3ASD0490SD	4.90	23	6	36	64
3ASD0500SD	5.00	23	6	36	64
3ASD0510SD	5.10	27	6	36	68
3ASD0520SD	5.20	27	6	36	68
3ASD0530SD	5.30	27	6	36	68
3ASD0540SD	5.40	27	6	36	68
3ASD0550SD	5.50	27	6	36	68
3ASD0560SD	5.60	27	6	36	68
3ASD0570SD	5.70	27	6	36	68
3ASD0580SD	5.80	27	6	36	68
3ASD0590SD	5.90	27	6	36	68
3ASD0600SD	6.00	27	6	36	68
3ASD0610SD	6.10	32	8	36	73
3ASD0620SD	6.20	32	8	36	73
3ASD0630SD	6.30	32	8	36	73
3ASD0640SD	6.40	32	8	36	73
3ASD0650SD	6.50	32	8	36	73
3ASD0660SD	6.60	32	8	36	73
3ASD0670SD	6.70	32	8	36	73
3ASD0680SD	6.80	32	8	36	73
3ASD0690SD	6.90	32	8	36	73
3ASD0700SD	7.00	32	8	36	73
3ASD0710SD	7.10	36	8	36	77
3ASD0720SD	7.20	36	8	36	77
3ASD0730SD	7.30	36	8	36	77
3ASD0740SD	7.40	36	8	36	77
3ASD0750SD	7.50	36	8	36	77
3ASD0760SD	7.60	36	8	36	77
3ASD0770SD	7.70	36	8	36	77
3ASD0780SD	7.80	36	8	36	77
3ASD0790SD	7.90	36	8	36	77
3ASD0800SD	8.00	36	8	36	77
3ASD0810SD	8.10	41	10	40	86
3ASD0820SD	8.20	41	10	40	86
3ASD0830SD	8.30	41	10	40	86
3ASD0840SD	8.40	41	10	40	86
3ASD0850SD	8.50	41	10	40	86
3ASD0860SD	8.60	41	10	40	86
3ASD0870SD	8.70	41	10	40	86
3ASD0880SD	8.80	41	10	40	86
3ASD0890SD	8.90	41	10	40	86
3ASD0900SD	9.00	41	10	40	86
3ASD0910SD	9.10	45	10	40	90
3ASD0920SD	9.20	45	10	40	90
3ASD0930SD	9.30	45	10	40	90
3ASD0940SD	9.40	45	10	40	90
3ASD0950SD	9.50	45	10	40	90
3ASD0960SD	9.60	45	10	40	90
3ASD0970SD	9.70	45	10	40	90
3ASD0980SD	9.80	45	10	40	90
3ASD0990SD	9.90	45	10	40	90
3ASD1000SD	10.00	45	10	40	90
3ASD1010SD	10.10	50	12	45	100
3ASD1020SD	10.20	50	12	45	100
3ASD1030SD	10.30	50	12	45	100
3ASD1040SD	10.40	50	12	45	100
3ASD1050SD	10.50	50	12	45	100
3ASD1060SD	10.60	50	12	45	100
3ASD1070SD	10.70	50	12	45	100
3ASD1080SD	10.80	50	12	45	100
3ASD1090SD	10.90	50	12	45	100
3ASD1100SD	11.00	50	12	45	100
3ASD1110SD	11.10	54	12	45	104
3ASD1120SD	11.20	54	12	45	104
3ASD1130SD	11.30	54	12	45	104
3ASD1140SD	11.40	54	12	45	104
3ASD1150SD	11.50	54	12	45	104
3ASD1160SD	11.60	54	12	45	104
3ASD1170SD	11.70	54	12	45	104
3ASD1180SD	11.80	54	12	45	104
3ASD1190SD	11.90	54	12	45	104
3ASD1200SD	12.00	54	12	45	104
3ASD1210SD	12.10	59	14	45	109
3ASD1220SD	12.20	59	14	45	109
3ASD1230SD	12.30	59	14	45	109
3ASD1240SD	12.40	59	14	45	109
3ASD1250SD	12.50	59	14	45	109
3ASD1260SD	12.60	59	14	45	109
3ASD1270SD	12.70	59	14	45	109
3ASD1280SD	12.80	59	14	45	109
3ASD1290SD	12.90	59	14	45	109
3ASD1300SD	13.00	59	14	45	109
3ASD1310SD	13.10	63	14	45	113
3ASD1320SD	13.20	63	14	45	113
3ASD1330SD	13.30	63	14	45	113
3ASD1340SD	13.40	63	14	45	113
3ASD1350SD	13.50	63	14	45	113
3ASD1360SD	13.60	63	14	45	113
3ASD1370SD	13.70	63	14	45	113
3ASD1380SD	13.80	63	14	45	113
3ASD1390SD	13.90	63	14	45	113
3ASD1400SD	14.00	63	14	45	113
3ASD1410SD	14.10	68	16	48	121
3ASD1420SD	14.20	68	16	48	121
3ASD1430SD	14.30	68	16	48	121
3ASD1440SD	14.40	68	16	48	121
3ASD1450SD	14.50	68	16	48	121
3ASD1460SD	14.60	68	16	48	121
3ASD1470SD	14.70	68	16	48	121
3ASD1480SD	14.80	68	16	48	121
3ASD1490SD	14.90	68	16	48	121
3ASD1500SD	15.00	68	16	48	121
3ASD1510SD	15.10	72	16	48	125
3ASD1520SD	15.20	72	16	48	125
3ASD1530SD	15.30	72	16	48	125
3ASD1540SD	15.40	72	16	48	125
3ASD1550SD	15.50	72	16	48	125
3ASD1560SD	15.60	72	16	48	125
3ASD1570SD	15.70	72	16	48	125
3ASD1580SD	15.80	72	16	48	125
3ASD1590SD	15.90	72	16	48	125
3ASD1600SD	16.00	72	16	48	125
3ASD1610SD	16.10	77	18	48	130
3ASD1620SD	16.20	77	18	48	130
3ASD1630SD	16.30	77	18	48	130
3ASD1640SD	16.40	77	18	48	130
3ASD1650SD	16.50	77	18	48	130
3ASD1660SD	16.60	77	18	48	130
3ASD1670SD	16.70	77	18	48	130
3ASD1680SD	16.80	77	18	48	130
3ASD1690SD	16.90	77	18	48	130
3ASD1700SD	17.00	77	18	48	130
3ASD1710SD	17.10	81	18	48	134
3ASD1720SD	17.20	81	18	48	134
3ASD1730SD	17.30	81	18	48	134
3ASD1740SD	17.40	81	18	48	134
3ASD1750SD	17.50	81	18	48	134
3ASD1760SD	17.60	81	18	48	134
3ASD1770SD	17.70	81	18	48	134
3ASD1780SD	17.80	81	18	48	134
3ASD1790SD	17.90	81	18	48	134
3ASD1800SD	18.00	81	18	48	134
3ASD1810SD	18.10	86	20	50	141
3ASD1820SD	18.20	86	20	50	141
3ASD1830SD	18.30	86	20	50	141
3ASD1840SD	18.40	86	20	50	141
3ASD1850SD	18.50	86	20	50	141
3ASD1860SD	18.60	86	20	50	141
3ASD1870SD	18.70	86	20	50	141
3ASD1880SD	18.80	86	20	50	141
3ASD1890SD	18.90	86	20	50	141
3ASD1900SD	19.00	86	20	50	141
3ASD1910SD	19.10	90	20	50	145
3ASD1920SD	19.20	90	20	50	145
3ASD1930SD	19.30	90	20	50	145
3ASD1940SD	19.40	90	20	50	145
3ASD1950SD	19.50	90	20	50	145
3ASD1960SD	19.60	90	20	50	145
3ASD1970SD	19.70	90	20	50	145
3ASD1980SD	19.80	90	20	50	145
3ASD1990SD	19.90	90	20	50	145
3ASD2000SD	20.00	90	20	50	145
