LREM 整體硬質合金四刃深溝圓鼻銑刀--高硬度型
刀具特點說明：
1、刀具尺寸按本公司標準制造，接受非標定制；
2、刃徑公差為0/-0.015，柄部公差為h6；
3、底刃均為對稱刃設計，有刃傾角；
4、dc≤D2刃尖R角公差為±0.005；其余R角公差為±0.015；
5、dc≤D6，螺旋角度為35度；dc＞D6螺旋角為 45度；
6、柄部過渡錐角度β=16°
HS系列--高硬度加工專用銑刀
產品特點:
□ 精選了超高硬度基材配以超耐熱性HS系涂層，使刀具具備超強的耐熱性，可加工HRC65以下所有熱處理后材料。
□ 采用高硬度超微粒子系低Co超硬合金母材，有效抑制超高速加工中產生的細微塑性變形，提高了刀具壽命。
□ 采用特殊的研磨技術，實現了較高的形狀精度和尺寸精度，可進行高精度的加工。
可加工材料
| 系列 | 被切削材料 | |||||||||||||
| 結構鋼 | 碳素鋼 | 合金鋼 | 預硬化鋼 | 調質鋼、模具鋼、高硬度鋼 | 不銹鋼l |
鈦合金、 耐熱合金 |
鑄鐵 | 鋁合金 | 銅合金 | 樹脂 | ||||
| HRC30-45 | HRC45-55 | HRC55-60 | >HRC60 | |||||||||||
| HS |
○ |
○ |
○ |
○ |
○ |
◎ |
◎ |
◎ |
○ |
○ |
○ |
|
◎ |
|
(◎ 最適合 ○ 適合)
可選類型和尺寸范圍：
兩刃平刀EM2-HS：D1.5~12.0mm 四刃平刀EM4-HS：D1.0~12.0mm
兩刃深溝平刀LEM2-HS：D0.1~4.0mm 四刃深溝平刀LEM4-HS：D1.0~6.0mm
兩刃深溝圓鼻刀LREM2-HS：D0.5~6.0mm 四刃深溝圓鼻刀LREM4-HS：D1.0~12.0mm
兩刃球刀BEM2-HS：R0.05~6.0mm 四刃球刀BEM4-HS：R1.0~6.0mm
兩刃深溝球刀LBEM2-HS：R0.1~2.0mm

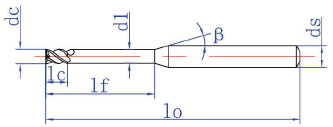

| 高硬度型訂貨號 | 刃徑 | 刃長 | 有效長 | 首徑 | 柄徑 | 總長 | 刀尖角 |
| HS系列（涂層） | dc | lc | lf | dl | ds | lo | R |
| LREM401001030HS | 1.0 | 0.8 | 3.0 | 0.95 | 4 | 50 | 0.1 |
| LREM401001040HS | 1.0 | 0.8 | 4.0 | 0.95 | 4 | 50 | 0.1 |
| LREM401001050HS | 1.0 | 0.8 | 5.0 | 0.95 | 4 | 50 | 0.1 |
| LREM401001060HS | 1.0 | 0.8 | 6.0 | 0.95 | 4 | 50 | 0.1 |
| LREM401001080HS | 1.0 | 0.8 | 8.0 | 0.95 | 4 | 50 | 0.1 |
| LREM401002030HS | 1.0 | 0.8 | 3.0 | 0.95 | 4 | 50 | 0.2 |
| LREM401002040HS | 1.0 | 0.8 | 4.0 | 0.95 | 4 | 50 | 0.2 |
| LREM401002050HS | 1.0 | 0.8 | 5.0 | 0.95 | 4 | 50 | 0.2 |
| LREM401002060HS | 1.0 | 0.8 | 6.0 | 0.95 | 4 | 50 | 0.2 |
| LREM401002080HS | 1.0 | 0.8 | 8.0 | 0.95 | 4 | 50 | 0.2 |
| LREM401501040HS | 1.5 | 1.2 | 4.0 | 1.45 | 4 | 50 | 0.1 |
| LREM401501060HS | 1.5 | 1.2 | 6.0 | 1.45 | 4 | 50 | 0.1 |
| LREM401501080HS | 1.5 | 1.2 | 8.0 | 1.45 | 4 | 50 | 0.1 |
| LREM401501100HS | 1.5 | 1.2 | 10.0 | 1.45 | 4 | 50 | 0.1 |
| LREM401502040HS | 1.5 | 1.2 | 4.0 | 1.45 | 4 | 50 | 0.2 |
| LREM401502060HS | 1.5 | 1.2 | 6.0 | 1.45 | 4 | 50 | 0.2 |
| LREM401502080HS | 1.5 | 1.2 | 8.0 | 1.45 | 4 | 50 | 0.2 |
| LREM401502100HS | 1.5 | 1.2 | 10.0 | 1.45 | 4 | 50 | 0.2 |
| LREM402001040HS | 2.0 | 1.6 | 4.0 | 1.92 | 4 | 50 | 0.1 |
| LREM402001060HS | 2.0 | 1.6 | 6.0 | 1.92 | 4 | 50 | 0.1 |
| LREM402001080HS | 2.0 | 1.6 | 8.0 | 1.92 | 4 | 50 | 0.1 |
| LREM402001100HS | 2.0 | 1.6 | 10.0 | 1.92 | 4 | 50 | 0.1 |
| LREM402001120HS | 2.0 | 1.6 | 12.0 | 1.92 | 4 | 55 | 0.1 |
| LREM402001160HS | 2.0 | 1.6 | 16.0 | 1.92 | 4 | 60 | 0.1 |
| LREM402002040HS | 2.0 | 1.6 | 4.0 | 1.92 | 4 | 50 | 0.2 |
| LREM402002060HS | 2.0 | 1.6 | 6.0 | 1.92 | 4 | 50 | 0.2 |
| LREM402002080HS | 2.0 | 1.6 | 8.0 | 1.92 | 4 | 50 | 0.2 |
| LREM402002100HS | 2.0 | 1.6 | 10.0 | 1.92 | 4 | 50 | 0.2 |
| LREM402002120HS | 2.0 | 1.6 | 12.0 | 1.92 | 4 | 55 | 0.2 |
| LREM402002160HS | 2.0 | 1.6 | 16.0 | 1.92 | 4 | 60 | 0.2 |
| LREM403001060HS | 3.0 | 2.4 | 6.0 | 2.92 | 6 | 55 | 0.1 |
| LREM403001100HS | 3.0 | 2.4 | 10.0 | 2.92 | 6 | 55 | 0.1 |
| LREM403001120HS | 3.0 | 2.4 | 12.0 | 2.92 | 6 | 55 | 0.1 |
| LREM403001160HS | 3.0 | 2.4 | 16.0 | 2.92 | 6 | 60 | 0.1 |
| LREM403002060HS | 3.0 | 2.4 | 6.0 | 2.92 | 6 | 55 | 0.2 |
| LREM403002100HS | 3.0 | 2.4 | 10.0 | 2.92 | 6 | 55 | 0.2 |
| LREM403002120HS | 3.0 | 2.4 | 12.0 | 2.92 | 6 | 55 | 0.2 |
| LREM403002160HS | 3.0 | 2.4 | 16.0 | 2.92 | 6 | 60 | 0.2 |
| LREM403005100HS | 3.0 | 2.4 | 10.0 | 2.92 | 6 | 55 | 0.5 |
| LREM403005120HS | 3.0 | 2.4 | 12.0 | 2.92 | 6 | 55 | 0.5 |
| LREM403005160HS | 3.0 | 2.4 | 16.0 | 2.92 | 6 | 60 | 0.5 |
| LREM403005200HS | 3.0 | 2.4 | 20.0 | 2.92 | 6 | 60 | 0.5 |
| LREM404002080HS | 4.0 | 3.2 | 8.0 | 3.82 | 6 | 65 | 0.2 |
| LREM404002160HS | 4.0 | 3.2 | 16.0 | 3.82 | 6 | 65 | 0.2 |
| LREM404002240HS | 4.0 | 3.2 | 24.0 | 3.82 | 6 | 70 | 0.2 |
| LREM404005080HS | 4.0 | 3.2 | 8.0 | 3.82 | 6 | 65 | 0.5 |
| LREM404005160HS | 4.0 | 3.2 | 16.0 | 3.82 | 6 | 65 | 0.5 |
| LREM404005240HS | 4.0 | 3.2 | 24.0 | 3.82 | 6 | 70 | 0.5 |
| LREM404010080HS | 4.0 | 3.2 | 8.0 | 3.82 | 6 | 65 | 1.0 |
| LREM404010160HS | 4.0 | 3.2 | 16.0 | 3.82 | 6 | 65 | 1.0 |
| LREM404010240HS | 4.0 | 3.2 | 24.0 | 3.82 | 6 | 70 | 1.0 |
| LREM406002120HS | 6.0 | 4.8 | 12.0 | 5.82 | 6 | 65 | 0.2 |
| LREM406002200HS | 6.0 | 4.8 | 20.0 | 5.82 | 6 | 70 | 0.2 |
| LREM406002300HS | 6.0 | 4.8 | 30.0 | 5.82 | 6 | 100 | 0.2 |
| LREM406005120HS | 6.0 | 4.8 | 12.0 | 5.82 | 6 | 65 | 0.5 |
| LREM406005200HS | 6.0 | 4.8 | 20.0 | 5.82 | 6 | 70 | 0.5 |
| LREM406005300HS | 6.0 | 4.8 | 30.0 | 5.82 | 6 | 100 | 0.5 |
| LREM406005400HS | 6.0 | 4.8 | 40.0 | 5.82 | 6 | 100 | 0.5 |
| LREM406010120HS | 6.0 | 4.8 | 12.0 | 5.82 | 6 | 65 | 1.0 |
| LREM406010200HS | 6.0 | 4.8 | 20.0 | 5.82 | 6 | 70 | 1.0 |
| LREM406010300HS | 6.0 | 4.8 | 30.0 | 5.82 | 6 | 100 | 1.0 |
| LREM406010400HS | 6.0 | 4.8 | 40.0 | 5.82 | 6 | 100 | 1.0 |
| LREM408005240HS | 8.0 | 8.0 | 24.0 | 7.82 | 8 | 100 | 0.5 |
| LREM408010240HS | 8.0 | 8.0 | 24.0 | 7.82 | 8 | 100 | 1.0 |
| LREM410005300HS | 10.0 | 10.0 | 30.0 | 9.82 | 10 | 110 | 0.5 |
| LREM410010300HS | 10.0 | 10.0 | 30.0 | 9.82 | 10 | 110 | 1.0 |
| LREM412005360HS | 12.0 | 12.0 | 36.0 | 11.82 | 12 | 120 | 0.5 |
| LREM412010360HS | 12.0 | 12.0 | 36.0 | 11.82 | 12 | 120 | 1.0 |
| LREM412020360HS | 12.0 | 12.0 | 36.0 | 11.82 | 12 | 120 | 2.0 |
