SD整硬螺旋槽鉆頭--SE基準型

O3SD-SE

SD 內冷整體硬質合金螺旋槽鉆頭3×D 基準型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角、刀尖形式、排屑槽形式、涂層等要素針對各系列特點進行分別設計，確保各系列達到最優的加工效果。

產品特色
產品尺寸
加工視頻

HE/SE 系列高性能整硬鉆頭

適合高速加工

產品特點:

□ 優異的鉆尖形式

容屑槽是圓弧過度，增加了鉆尖的強度，后角是鏟磨成圓弧，并配合良好的鈍化工藝。

□ 采用銑刀柄式設計

采用銑刀相同的柄部形式，實現高精度鉆孔。

加工案例:

□ 切削條件

被加工材料: 合金鋼SCM440	鉆頭直徑: 8.0mm
切削速度: 100m / min	進給量: 1200mm / mi
冷卻方式: Emulsion	涂層: HE 涂層

□ 加工壽命比較

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

◎

○

◎

○

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷 / 7XD / 7XD 內冷

尺寸范圍：

D=2.00~20.00mm

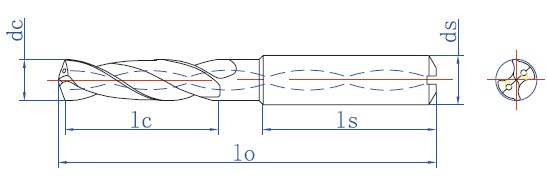

基準型訂貨號	刃徑	槽長	柄徑	柄長	總長
SE系列（通用有涂層）	dc	lc	ds	ls	lo
O3SD0200SE	2	10	3	28	41
O3SD0210SE	2.1	10	3	28	41
O3SD0220SE	2.2	10	3	28	41
O3SD0230SE	2.3	10	3	28	41
O3SD0240SE	2.4	10	3	28	41
O3SD0250SE	2.5	10	3	28	41
O3SD0260SE	2.6	14	3	28	45
O3SD0270SE	2.7	14	3	28	45
O3SD0280SE	2.8	14	3	28	45
O3SD0290SE	2.9	14	3	28	45
O3SD0300SE	3	14	3	28	45
O3SD0310SE	3.1	18	4	28	51
O3SD0320SE	3.2	18	4	28	51
O3SD0330SE	3.3	18	4	28	51
O3SD0340SE	3.4	18	4	28	51
O3SD0350SE	3.5	18	4	28	51
O3SD0360SE	3.6	18	4	28	51
O3SD0370SE	3.7	18	4	28	51
O3SD0380SE	3.8	18	4	28	51
O3SD0390SE	3.9	18	4	28	51
O3SD0400SE	4	18	4	28	51
O3SD0410SE	4.1	23	6	36	64
O3SD0420SE	4.2	23	6	36	64
O3SD0430SE	4.3	23	6	36	64
O3SD0440SE	4.4	23	6	36	64
O3SD0450SE	4.5	23	6	36	64
O3SD0460SE	4.6	23	6	36	64
O3SD0470SE	4.7	23	6	36	64
O3SD0480SE	4.8	23	6	36	64
O3SD0490SE	4.9	23	6	36	64
O3SD0500SE	5	23	6	36	64
O3SD0510SE	5.1	27	6	36	68
O3SD0520SE	5.2	27	6	36	68
O3SD0530SE	5.3	27	6	36	68
O3SD0540SE	5.4	27	6	36	68
O3SD0550SE	5.5	27	6	36	68
O3SD0560SE	5.6	27	6	36	68
O3SD0570SE	5.7	27	6	36	68
O3SD0580SE	5.8	27	6	36	68
O3SD0590SE	5.9	27	6	36	68
O3SD0600SE	6	27	6	36	68
O3SD0610SE	6.1	32	8	36	73
O3SD0620SE	6.2	32	8	36	73
O3SD0630SE	6.3	32	8	36	73
O3SD0640SE	6.4	32	8	36	73
O3SD0650SE	6.5	32	8	36	73
O3SD0660SE	6.6	32	8	36	73
O3SD0670SE	6.7	32	8	36	73
O3SD0680SE	6.8	32	8	36	73
O3SD0690SE	6.9	32	8	36	73
O3SD0700SE	7	32	8	36	73
O3SD0710SE	7.1	36	8	36	77
O3SD0720SE	7.2	36	8	36	77
O3SD0730SE	7.3	36	8	36	77
O3SD0740SE	7.4	36	8	36	77
O3SD0750SE	7.5	36	8	36	77
O3SD0760SE	7.6	36	8	36	77
O3SD0770SE	7.7	36	8	36	77
O3SD0780SE	7.8	36	8	36	77
O3SD0790SE	7.9	36	8	36	77
O3SD0800SE	8	36	8	36	77
O3SD0810SE	8.1	41	10	40	86
O3SD0820SE	8.2	41	10	40	86
O3SD0830SE	8.3	41	10	40	86
O3SD0840SE	8.4	41	10	40	86
O3SD0850SE	8.5	41	10	40	86
O3SD0860SE	8.6	41	10	40	86
O3SD0870SE	8.7	41	10	40	86
O3SD0880SE	8.8	41	10	40	86
O3SD0890SE	8.9	41	10	40	86
O3SD0900SE	9	41	10	40	86
O3SD0910SE	9.1	45	10	40	90
O3SD0920SE	9.2	45	10	40	90
O3SD0930SE	9.3	45	10	40	90
O3SD0940SE	9.4	45	10	40	90
O3SD0950SE	9.5	45	10	40	90
O3SD0960SE	9.6	45	10	40	90
O3SD0970SE	9.7	45	10	40	90
O3SD0980SE	9.8	45	10	40	90
O3SD0990SE	9.9	45	10	40	90
O3SD1000SE	10	45	10	40	90
O3SD1010SE	10.1	50	12	45	100
O3SD1020SE	10.2	50	12	45	100
O3SD1030SE	10.3	50	12	45	100
O3SD1040SE	10.4	50	12	45	100
O3SD1050SE	10.5	50	12	45	100
O3SD1060SE	10.6	50	12	45	100
O3SD1070SE	10.7	50	12	45	100
O3SD1080SE	10.8	50	12	45	100
O3SD1090SE	10.9	50	12	45	100
O3SD1100SE	11	50	12	45	100
O3SD1110SE	11.1	54	12	45	104
O3SD1120SE	11.2	54	12	45	104
O3SD1130SE	11.3	54	12	45	104
O3SD1140SE	11.4	54	12	45	104
O3SD1150SE	11.5	54	12	45	104
O3SD1160SE	11.6	54	12	45	104
O3SD1170SE	11.7	54	12	45	104
O3SD1180SE	11.8	54	12	45	104
O3SD1190SE	11.9	54	12	45	104
O3SD1200SE	12	54	12	45	104
O3SD1210SE	12.1	59	14	45	109
O3SD1220SE	12.2	59	14	45	109
O3SD1230SE	12.3	59	14	45	109
O3SD1240SE	12.4	59	14	45	109
O3SD1250SE	12.5	59	14	45	109
O3SD1260SE	12.6	59	14	45	109
O3SD1270SE	12.7	59	14	45	109
O3SD1280SE	12.8	59	14	45	109
O3SD1290SE	12.9	59	14	45	109
O3SD1300SE	13	59	14	45	109
O3SD1310SE	13.1	63	14	45	113
O3SD1320SE	13.2	63	14	45	113
O3SD1330SE	13.3	63	14	45	113
O3SD1340SE	13.4	63	14	45	113
O3SD1350SE	13.5	63	14	45	113
O3SD1360SE	13.6	63	14	45	113
O3SD1370SE	13.7	63	14	45	113
O3SD1380SE	13.8	63	14	45	113
O3SD1390SE	13.9	63	14	45	113
O3SD1400SE	14	63	14	45	113
O3SD1410SE	14.1	68	16	48	121
O3SD1420SE	14.2	68	16	48	121
O3SD1430SE	14.3	68	16	48	121
O3SD1440SE	14.4	68	16	48	121
O3SD1450SE	14.5	68	16	48	121
O3SD1460SE	14.6	68	16	48	121
O3SD1470SE	14.7	68	16	48	121
O3SD1480SE	14.8	68	16	48	121
O3SD1490SE	14.9	68	16	48	121
O3SD1500SE	15	68	16	48	121
O3SD1510SE	15.1	72	16	48	125
O3SD1520SE	15.2	72	16	48	125
O3SD1530SE	15.3	72	16	48	125
O3SD1540SE	15.4	72	16	48	125
O3SD1550SE	15.5	72	16	48	125
O3SD1560SE	15.6	72	16	48	125
O3SD1570SE	15.7	72	16	48	125
O3SD1580SE	15.8	72	16	48	125
O3SD1590SE	15.9	72	16	48	125
O3SD1600SE	16	72	16	48	125
O3SD1610SE	16.1	77	18	48	130
O3SD1620SE	16.2	77	18	48	130
O3SD1630SE	16.3	77	18	48	130
O3SD1640SE	16.4	77	18	48	130
O3SD1650SE	16.5	77	18	48	130
O3SD1660SE	16.6	77	18	48	130
O3SD1670SE	16.7	77	18	48	130
O3SD1680SE	16.8	77	18	48	130
O3SD1690SE	16.9	77	18	48	130
O3SD1700SE	17	77	18	48	130
O3SD1710SE	17.1	81	18	48	134
O3SD1720SE	17.2	81	18	48	134
O3SD1730SE	17.3	81	18	48	134
O3SD1740SE	17.4	81	18	48	134
O3SD1750SE	17.5	81	18	48	134
O3SD1760SE	17.6	81	18	48	134
O3SD1770SE	17.7	81	18	48	134
O3SD1780SE	17.8	81	18	48	134
O3SD1790SE	17.9	81	18	48	134
O3SD1800SE	18	81	18	48	134
O3SD1810SE	18.1	86	20	50	141
O3SD1820SE	18.2	86	20	50	141
O3SD1830SE	18.3	86	20	50	141
O3SD1840SE	18.4	86	20	50	141
O3SD1850SE	18.5	86	20	50	141
O3SD1860SE	18.6	86	20	50	141
O3SD1870SE	18.7	86	20	50	141
O3SD1880SE	18.8	86	20	50	141
O3SD1890SE	18.9	86	20	50	141
O3SD1900SE	19	86	20	50	141
O3SD1910SE	19.1	90	20	50	145
O3SD1920SE	19.2	90	20	50	145
O3SD1930SE	19.3	90	20	50	145
O3SD1940SE	19.4	90	20	50	145
O3SD1950SE	19.5	90	20	50	145
O3SD1960SE	19.6	90	20	50	145
O3SD1970SE	19.7	90	20	50	145
O3SD1980SE	19.8	90	20	50	145
O3SD1990SE	19.9	90	20	50	145
O3SD2000SE	20	90	20	50	145
