SD整硬螺旋槽鉆頭--SE基準型

O7SD-SE

SD 內冷整體硬質合金螺旋槽鉆頭7×D 基準型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角、刀尖形式、排屑槽形式、涂層等要素針對各系列特點進行分別設計，確保各系列達到最優的加工效果。

產品特色
產品尺寸
加工視頻

HE/SE 系列高性能整硬鉆頭

適合高速加工

產品特點:

□ 優異的鉆尖形式

容屑槽是圓弧過度，增加了鉆尖的強度，后角是鏟磨成圓弧，并配合良好的鈍化工藝。

□ 采用銑刀柄式設計

采用銑刀相同的柄部形式，實現高精度鉆孔。

加工案例:

□ 切削條件

被加工材料: 合金鋼SCM440	鉆頭直徑: 8.0mm
切削速度: 100m / min	進給量: 1200mm / mi
冷卻方式: Emulsion	涂層: HE 涂層

□ 加工壽命比較

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

◎

○

◎

○

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷 / 7XD / 7XD 內冷

尺寸范圍：

D=2.00~20.00mm

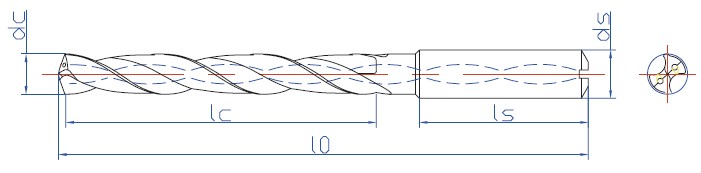

基準型訂貨號	刃徑	槽長	柄徑	柄長	總長
SE系列（通用有涂層）	dc	lc	ds	ls	lo
O7SD0200SE	2	20	3	28	51
O7SD0210SE	2.1	20	3	28	51
O7SD0220SE	2.2	20	3	28	51
O7SD0230SE	2.3	20	3	28	51
O7SD0240SE	2.4	20	3	28	51
O7SD0250SE	2.5	20	3	28	51
O7SD0260SE	2.6	26	3	28	57
O7SD0270SE	2.7	26	3	28	57
O7SD0280SE	2.8	26	3	28	57
O7SD0300SE	3	26	3	28	57
O7SD0310SE	3.1	34	4	28	67
O7SD0320SE	3.2	34	4	28	67
O7SD0330SE	3.3	34	4	28	67
O7SD0340SE	3.4	34	4	28	67
O7SD0350SE	3.5	34	4	28	67
O7SD0360SE	3.6	34	4	28	67
O7SD0370SE	3.7	34	4	28	67
O7SD0380SE	3.8	34	4	28	67
O7SD0390SE	3.9	34	4	28	67
O7SD0400SE	4	34	4	28	67
O7SD0410SE	4.1	47	6	36	88
O7SD0420SE	4.2	47	6	36	88
O7SD0430SE	4.3	47	6	36	88
O7SD0440SE	4.4	47	6	36	88
O7SD0450SE	4.5	47	6	36	88
O7SD0460SE	4.6	47	6	36	88
O7SD0470SE	4.7	47	6	36	88
O7SD0480SE	4.8	47	6	36	88
O7SD0490SE	4.9	47	6	36	88
O7SD0500SE	5	47	6	36	88
O7SD0510SE	5.1	51	6	36	92
O7SD0520SE	5.2	51	6	36	92
O7SD0530SE	5.3	51	6	36	92
O7SD0540SE	5.4	51	6	36	92
O7SD0550SE	5.5	51	6	36	92
O7SD0560SE	5.6	51	6	36	92
O7SD0570SE	5.7	51	6	36	92
O7SD0580SE	5.8	51	6	36	92
O7SD0590SE	5.9	51	6	36	92
O7SD0600SE	6	51	6	36	92
O7SD0610SE	6.1	64	8	36	105
O7SD0620SE	6.2	64	8	36	105
O7SD0630SE	6.3	64	8	36	105
O7SD0640SE	6.4	64	8	36	105
O7SD0650SE	6.5	64	8	36	105
O7SD0660SE	6.6	64	8	36	105
O7SD0670SE	6.7	64	8	36	105
O7SD0680SE	6.8	64	8	36	105
O7SD0690SE	6.9	64	8	36	105
O7SD0700SE	7	64	8	36	105
O7SD0710SE	7.1	68	8	36	109
O7SD0720SE	7.2	68	8	36	109
O7SD0730SE	7.3	68	8	36	109
O7SD0740SE	7.4	68	8	36	109
O7SD0750SE	7.5	68	8	36	109
O7SD0760SE	7.6	68	8	36	109
O7SD0770SE	7.7	68	8	36	109
O7SD0780SE	7.8	68	8	36	109
O7SD0790SE	7.9	68	8	36	109
O7SD0800SE	8	68	8	36	109
O7SD0810SE	8.1	81	10	40	126
O7SD0820SE	8.2	81	10	40	126
O7SD0830SE	8.3	81	10	40	126
O7SD0840SE	8.4	81	10	40	126
O7SD0850SE	8.5	81	10	40	126
O7SD0860SE	8.6	81	10	40	126
O7SD0870SE	8.7	81	10	40	126
O7SD0880SE	8.8	81	10	40	126
O7SD0890SE	8.9	81	10	40	126
O7SD0900SE	9	81	10	40	126
O7SD0910SE	9.1	85	10	40	130
O7SD0920SE	9.2	85	10	40	130
O7SD0930SE	9.3	85	10	40	130
O7SD0940SE	9.4	85	10	40	130
O7SD0950SE	9.5	85	10	40	130
O7SD0960SE	9.6	85	10	40	130
O7SD0970SE	9.7	85	10	40	130
O7SD0980SE	9.8	85	10	40	130
O7SD0990SE	9.9	85	10	40	130
O7SD1000SE	10	85	10	40	130
O7SD1010SE	10.1	98	12	45	148
O7SD1020SE	10.2	98	12	45	148
O7SD1030SE	10.3	98	12	45	148
O7SD1040SE	10.4	98	12	45	148
O7SD1050SE	10.5	98	12	45	148
O7SD1060SE	10.6	98	12	45	148
O7SD1070SE	10.7	98	12	45	148
O7SD1080SE	10.8	98	12	45	148
O7SD1090SE	10.9	98	12	45	148
O7SD1100SE	11	98	12	45	148
O7SD1110SE	11.1	102	12	45	152
O7SD1120SE	11.2	102	12	45	152
O7SD1130SE	11.3	102	12	45	152
O7SD1140SE	11.4	102	12	45	152
O7SD1150SE	11.5	102	12	45	152
O7SD1160SE	11.6	102	12	45	152
O7SD1170SE	11.7	102	12	45	152
O7SD1180SE	11.8	102	12	45	152
O7SD1190SE	11.9	102	12	45	152
O7SD1200SE	12	102	12	45	152
O7SD1210SE	12.1	115	14	45	165
O7SD1220SE	12.2	115	14	45	165
O7SD1230SE	12.3	115	14	45	165
O7SD1240SE	12.4	115	14	45	165
O7SD1250SE	12.5	115	14	45	165
O7SD1260SE	12.6	115	14	45	165
O7SD1270SE	12.7	115	14	45	165
O7SD1280SE	12.8	115	14	45	165
O7SD1290SE	12.9	115	14	45	165
O7SD1300SE	13	115	14	45	165
O7SD1310SE	13.1	119	14	45	169
O7SD1320SE	13.2	119	14	45	169
O7SD1330SE	13.3	119	14	45	169
O7SD1340SE	13.4	119	14	45	169
O7SD1350SE	13.5	119	14	45	169
O7SD1360SE	13.6	119	14	45	169
O7SD1370SE	13.7	119	14	45	169
O7SD1380SE	13.8	119	14	45	169
O7SD1390SE	13.9	119	14	45	169
O7SD1400SE	14	119	14	45	169
O7SD1410SE	14.1	132	16	48	185
O7SD1420SE	14.2	132	16	48	185
O7SD1430SE	14.3	132	16	48	185
O7SD1440SE	14.4	132	16	48	185
O7SD1450SE	14.5	132	16	48	185
O7SD1460SE	14.6	132	16	48	185
O7SD1470SE	14.7	132	16	48	185
O7SD1480SE	14.8	132	16	48	185
O7SD1490SE	14.9	132	16	48	185
O7SD1500SE	15	132	16	48	185
O7SD1510SE	15.1	136	16	48	189
O7SD1520SE	15.2	136	16	48	189
O7SD1530SE	15.3	136	16	48	189
O7SD1540SE	15.4	136	16	48	189
O7SD1550SE	15.5	136	16	48	189
O7SD1560SE	15.6	136	16	48	189
O7SD1570SE	15.7	136	16	48	189
O7SD1580SE	15.8	136	16	48	189
O7SD1590SE	15.9	136	16	48	189
O7SD1600SE	16	136	16	48	189
O7SD1610SE	16.1	149	18	48	202
O7SD1620SE	16.2	149	18	48	202
O7SD1630SE	16.3	149	18	48	202
O7SD1640SE	16.4	149	18	48	202
O7SD1650SE	16.5	149	18	48	202
O7SD1660SE	16.6	149	18	48	202
O7SD1670SE	16.7	149	18	48	202
O7SD1680SE	16.8	149	18	48	202
O7SD1690SE	16.9	149	18	48	202
O7SD1700SE	17	149	18	48	202
O7SD1710SE	17.1	153	18	48	206
O7SD1720SE	17.2	153	18	48	206
O7SD1730SE	17.3	153	18	48	206
O7SD1740SE	17.4	153	18	48	206
O7SD1750SE	17.5	153	18	48	206
O7SD1760SE	17.6	153	18	48	206
O7SD1770SE	17.7	153	18	48	206
O7SD1780SE	17.8	153	18	48	206
O7SD1790SE	17.9	153	18	48	206
O7SD1800SE	18	153	18	48	206
O7SD1850SE	18.5	166	20	50	221
O7SD1860SE	18.6	166	20	50	221
O7SD1870SE	18.7	166	20	50	221
O7SD1880SE	18.8	166	20	50	221
O7SD1890SE	18.9	166	20	50	221
O7SD1900SE	19	166	20	50	221
O7SD1910SE	19.1	170	20	50	225
O7SD1920SE	19.2	170	20	50	225
O7SD1930SE	19.3	170	20	50	225
O7SD1940SE	19.4	170	20	50	225
O7SD1950SE	19.5	170	20	50	225
O7SD1960SE	19.6	170	20	50	225
O7SD1970SE	19.7	170	20	50	225
O7SD1980SE	19.8	170	20	50	225
O7SD1990SE	19.9	170	20	50	225
O7SD2000SE	20	170	20	50	225
