產品中心

首頁 > AST自制產品 > 標準硬質合金鉆頭 > 麻花鉆 > SD整硬螺旋槽鉆頭--SE... > 7SD-SE

SD整硬螺旋槽鉆頭--SE基準型

7SD-SE

SD 整體硬質合金螺旋槽鉆頭7×D 基準型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角、刀尖形式、排屑槽形式、涂層等要素針對各系列特點進行分別設計，確保各系列達到最優(yōu)的加工效果。



  • 產品特色
  • 產品尺寸
  • 加工視頻

HE/SE 系列高性能整硬鉆 頭

適合高速加工


產品特點:

□ 優(yōu)異的鉆尖形式

   容屑槽是圓弧過度，增加了鉆尖的強度，后角是鏟磨成圓弧，并配合良好的鈍化工藝。

□ 采用銑刀柄式設計

    采用銑刀相同的柄部形式，實現高精度鉆孔。

加工案例:

□ 切削條件

被加工材料: 合金鋼SCM440
 鉆頭直徑:  8.0mm
切削速度: 100m / min
 進給量:  1200mm / mi
冷卻方式: Emulsion
 涂層:  HE 涂層

□ 加工壽命比較




被切削材料:

系列

被切削材料



結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

HE

◎

◎

◎

◎

◎

◎

◎

○

○

○



SE

◎

◎

◎

◎

◎

○

○

○

○

(◎ 最適合  ○ 適合)



可選類型：

3XD  /  3XD 內冷  /  5XD  /  5XD 內冷  /  7XD  /  7XD 內冷



尺寸范圍：

D=2.00~20.00mm

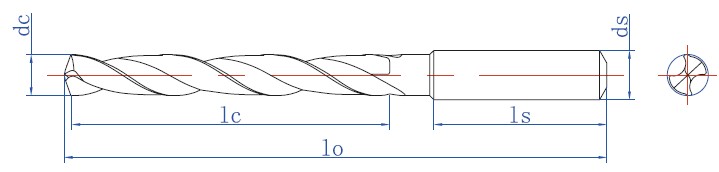

基準型訂貨號 刃徑 槽長 柄徑 柄長 總長
SE系列（通用有涂層） dc  lc  ds  ls  lo
7SD0200SE 2 20 3 28 51
7SD0210SE 2.1 20 3 28 51
7SD0220SE 2.2 20 3 28 51
7SD0230SE 2.3 20 3 28 51
7SD0240SE 2.4 20 3 28 51
7SD0250SE 2.5 20 3 28 51
7SD0260SE 2.6 26 3 28 57
7SD0270SE 2.7 26 3 28 57
7SD0280SE 2.8 26 3 28 57
7SD0300SE 3 26 3 28 57
7SD0310SE 3.1 34 4 28 67
7SD0320SE 3.2 34 4 28 67
7SD0330SE 3.3 34 4 28 67
7SD0340SE 3.4 34 4 28 67
7SD0350SE 3.5 34 4 28 67
7SD0360SE 3.6 34 4 28 67
7SD0370SE 3.7 34 4 28 67
7SD0380SE 3.8 34 4 28 67
7SD0390SE 3.9 34 4 28 67
7SD0400SE 4 34 4 28 67
7SD0410SE 4.1 47 6 36 88
7SD0420SE 4.2 47 6 36 88
7SD0430SE 4.3 47 6 36 88
7SD0440SE 4.4 47 6 36 88
7SD0450SE 4.5 47 6 36 88
7SD0460SE 4.6 47 6 36 88
7SD0470SE 4.7 47 6 36 88
7SD0480SE 4.8 47 6 36 88
7SD0490SE 4.9 47 6 36 88
7SD0500SE 5 47 6 36 88
7SD0510SE 5.1 51 6 36 92
7SD0520SE 5.2 51 6 36 92
7SD0530SE 5.3 51 6 36 92
7SD0540SE 5.4 51 6 36 92
7SD0550SE 5.5 51 6 36 92
7SD0560SE 5.6 51 6 36 92
7SD0570SE 5.7 51 6 36 92
7SD0580SE 5.8 51 6 36 92
7SD0590SE 5.9 51 6 36 92
7SD0600SE 6 51 6 36 92
7SD0610SE 6.1 64 8 36 105
7SD0620SE 6.2 64 8 36 105
7SD0630SE 6.3 64 8 36 105
7SD0640SE 6.4 64 8 36 105
7SD0650SE 6.5 64 8 36 105
7SD0660SE 6.6 64 8 36 105
7SD0670SE 6.7 64 8 36 105
7SD0680SE 6.8 64 8 36 105
7SD0690SE 6.9 64 8 36 105
7SD0700SE 7 64 8 36 105
7SD0710SE 7.1 68 8 36 109
7SD0720SE 7.2 68 8 36 109
7SD0730SE 7.3 68 8 36 109
7SD0740SE 7.4 68 8 36 109
7SD0750SE 7.5 68 8 36 109
7SD0760SE 7.6 68 8 36 109
7SD0770SE 7.7 68 8 36 109
7SD0780SE 7.8 68 8 36 109
7SD0790SE 7.9 68 8 36 109
7SD0800SE 8 68 8 36 109
7SD0810SE 8.1 81 10 40 126
7SD0820SE 8.2 81 10 40 126
7SD0830SE 8.3 81 10 40 126
7SD0840SE 8.4 81 10 40 126
7SD0850SE 8.5 81 10 40 126
7SD0860SE 8.6 81 10 40 126
7SD0870SE 8.7 81 10 40 126
7SD0880SE 8.8 81 10 40 126
7SD0890SE 8.9 81 10 40 126
7SD0900SE 9 81 10 40 126
7SD0910SE 9.1 85 10 40 130
7SD0920SE 9.2 85 10 40 130
7SD0930SE 9.3 85 10 40 130
7SD0940SE 9.4 85 10 40 130
7SD0950SE 9.5 85 10 40 130
7SD0960SE 9.6 85 10 40 130
7SD0970SE 9.7 85 10 40 130
7SD0980SE 9.8 85 10 40 130
7SD0990SE 9.9 85 10 40 130
7SD1000SE 10 85 10 40 130
7SD1010SE 10.1 98 12 45 148
7SD1020SE 10.2 98 12 45 148
7SD1030SE 10.3 98 12 45 148
7SD1040SE 10.4 98 12 45 148
7SD1050SE 10.5 98 12 45 148
7SD1060SE 10.6 98 12 45 148
7SD1070SE 10.7 98 12 45 148
7SD1080SE 10.8 98 12 45 148
7SD1090SE 10.9 98 12 45 148
7SD1100SE 11 98 12 45 148
7SD1110SE 11.1 102 12 45 152
7SD1120SE 11.2 102 12 45 152
7SD1130SE 11.3 102 12 45 152
7SD1140SE 11.4 102 12 45 152
7SD1150SE 11.5 102 12 45 152
7SD1160SE 11.6 102 12 45 152
7SD1170SE 11.7 102 12 45 152
7SD1180SE 11.8 102 12 45 152
7SD1190SE 11.9 102 12 45 152
7SD1200SE 12 102 12 45 152
7SD1210SE 12.1 115 14 45 165
7SD1220SE 12.2 115 14 45 165
7SD1230SE 12.3 115 14 45 165
7SD1240SE 12.4 115 14 45 165
7SD1250SE 12.5 115 14 45 165
7SD1260SE 12.6 115 14 45 165
7SD1270SE 12.7 115 14 45 165
7SD1280SE 12.8 115 14 45 165
7SD1290SE 12.9 115 14 45 165
7SD1300SE 13 115 14 45 165
7SD1310SE 13.1 119 14 45 169
7SD1320SE 13.2 119 14 45 169
7SD1330SE 13.3 119 14 45 169
7SD1340SE 13.4 119 14 45 169
7SD1350SE 13.5 119 14 45 169
7SD1360SE 13.6 119 14 45 169
7SD1370SE 13.7 119 14 45 169
7SD1380SE 13.8 119 14 45 169
7SD1390SE 13.9 119 14 45 169
7SD1400SE 14 119 14 45 169
7SD1410SE 14.1 132 16 48 185
7SD1420SE 14.2 132 16 48 185
7SD1430SE 14.3 132 16 48 185
7SD1440SE 14.4 132 16 48 185
7SD1450SE 14.5 132 16 48 185
7SD1460SE 14.6 132 16 48 185
7SD1470SE 14.7 132 16 48 185
7SD1480SE 14.8 132 16 48 185
7SD1490SE 14.9 132 16 48 185
7SD1500SE 15 132 16 48 185
7SD1510SE 15.1 136 16 48 189
7SD1520SE 15.2 136 16 48 189
7SD1530SE 15.3 136 16 48 189
7SD1540SE 15.4 136 16 48 189
7SD1550SE 15.5 136 16 48 189
7SD1560SE 15.6 136 16 48 189
7SD1570SE 15.7 136 16 48 189
7SD1580SE 15.8 136 16 48 189
7SD1590SE 15.9 136 16 48 189
7SD1600SE 16 136 16 48 189
7SD1610SE 16.1 149 18 48 202
7SD1620SE 16.2 149 18 48 202
7SD1630SE 16.3 149 18 48 202
7SD1640SE 16.4 149 18 48 202
7SD1650SE 16.5 149 18 48 202
7SD1660SE 16.6 149 18 48 202
7SD1670SE 16.7 149 18 48 202
7SD1680SE 16.8 149 18 48 202
7SD1690SE 16.9 149 18 48 202
7SD1700SE 17 149 18 48 202
7SD1710SE 17.1 153 18 48 206
7SD1720SE 17.2 153 18 48 206
7SD1730SE 17.3 153 18 48 206
7SD1740SE 17.4 153 18 48 206
7SD1750SE 17.5 153 18 48 206
7SD1760SE 17.6 153 18 48 206
7SD1770SE 17.7 153 18 48 206
7SD1780SE 17.8 153 18 48 206
7SD1790SE 17.9 153 18 48 206
7SD1800SE 18 153 18 48 206
7SD1850SE 18.5 166 20 50 221
7SD1860SE 18.6 166 20 50 221
7SD1870SE 18.7 166 20 50 221
7SD1880SE 18.8 166 20 50 221
7SD1890SE 18.9 166 20 50 221
7SD1900SE 19 166 20 50 221
7SD1910SE 19.1 170 20 50 225
7SD1920SE 19.2 170 20 50 225
7SD1930SE 19.3 170 20 50 225
7SD1940SE 19.4 170 20 50 225
7SD1950SE 19.5 170 20 50 225
7SD1960SE 19.6 170 20 50 225
7SD1970SE 19.7 170 20 50 225
7SD1980SE 19.8 170 20 50 225
7SD1990SE 19.9 170 20 50 225
7SD2000SE 20 170 20 50 225
