FD鋁合金加工用直槽鉆頭

O5FD-SA

FD 內冷整體硬質合金鋁用直槽鉆頭5×D 基準型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為M7，柄部公差為H6。

3、刀尖頂角、刀尖形式、排屑槽均針對各系列的加工特點分別設計，確保達到最優的加工效果。

產品特色
產品尺寸
加工視頻

FD系列整硬直槽鉆頭

鋁用無涂層/鑄鐵用有涂層

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷

尺寸范圍：

D=2.00~20.00mm

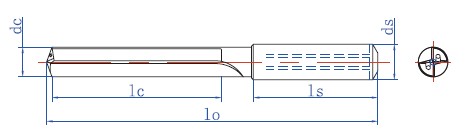

基準型訂貨號	刃徑	槽長	柄徑	柄長	總長
SA系列（鋁用無涂層）	dc	lc	ds	ls	lo
O5FD0300SA	3.00	24	4	28	57
O5FD0310SA	3.10	24	4	28	57
O5FD0320SA	3.20	24	4	28	57
O5FD0330SA	3.30	24	4	28	57
O5FD0340SA	3.40	24	4	28	57
O5FD0350SA	3.50	24	4	28	57
O5FD0360SA	3.60	24	4	28	57
O5FD0370SA	3.70	24	4	28	57
O5FD0380SA	3.80	24	4	28	57
O5FD0390SA	3.90	24	4	28	57
O5FD0400SA	4.00	24	4	28	57
O5FD0410SA	4.10	30	6	36	71
O5FD0420SA	4.20	30	6	36	71
O5FD0430SA	4.30	30	6	36	71
O5FD0440SA	4.40	30	6	36	71
O5FD0450SA	4.50	30	6	36	71
O5FD0460SA	4.60	30	6	36	71
O5FD0470SA	4.70	30	6	36	71
O5FD0480SA	4.80	30	6	36	71
O5FD0490SA	4.90	30	6	36	71
O5FD0500SA	5.00	30	6	36	71
O5FD0510SA	5.10	36	6	36	77
O5FD0520SA	5.20	36	6	36	77
O5FD0530SA	5.30	36	6	36	77
O5FD0540SA	5.40	36	6	36	77
O5FD0550SA	5.50	36	6	36	77
O5FD0560SA	5.60	36	6	36	77
O5FD0570SA	5.70	36	6	36	77
O5FD0580SA	5.80	36	6	36	77
O5FD0590SA	5.90	36	6	36	77
O5FD0600SA	6.00	36	6	36	77
O5FD0610SA	6.10	42	8	36	83
O5FD0620SA	6.20	42	8	36	83
O5FD0630SA	6.30	42	8	36	83
O5FD0640SA	6.40	42	8	36	83
O5FD0650SA	6.50	42	8	36	83
O5FD0660SA	6.60	42	8	36	83
O5FD0670SA	6.70	42	8	36	83
O5FD0680SA	6.80	42	8	36	83
O5FD0690SA	6.90	42	8	36	83
O5FD0700SA	7.00	42	8	36	83
O5FD0710SA	7.10	48	8	36	89
O5FD0720SA	7.20	48	8	36	89
O5FD0730SA	7.30	48	8	36	89
O5FD0740SA	7.40	48	8	36	89
O5FD0750SA	7.50	48	8	36	89
O5FD0760SA	7.60	48	8	36	89
O5FD0770SA	7.70	48	8	36	89
O5FD0780SA	7.80	48	8	36	89
O5FD0790SA	7.90	48	8	36	89
O5FD0800SA	8.00	48	8	36	89
O5FD0810SA	8.10	54	10	40	99
O5FD0820SA	8.20	54	10	40	99
O5FD0830SA	8.30	54	10	40	99
O5FD0840SA	8.40	54	10	40	99
O5FD0850SA	8.50	54	10	40	99
O5FD0860SA	8.60	54	10	40	99
O5FD0870SA	8.70	54	10	40	99
O5FD0880SA	8.80	54	10	40	99
O5FD0890SA	8.90	54	10	40	99
O5FD0900SA	9.00	54	10	40	99
O5FD0910SA	9.10	60	10	40	105
O5FD0920SA	9.20	60	10	40	105
O5FD0930SA	9.30	60	10	40	105
O5FD0940SA	9.40	60	10	40	105
O5FD0950SA	9.50	60	10	40	105
O5FD0960SA	9.60	60	10	40	105
O5FD0970SA	9.70	60	10	40	105
O5FD0980SA	9.80	60	10	40	105
O5FD0990SA	9.90	60	10	40	105
O5FD1000SA	10.00	60	10	40	105
O5FD1010SA	10.10	66	12	45	116
O5FD1020SA	10.20	66	12	45	116
O5FD1030SA	10.30	66	12	45	116
O5FD1040SA	10.40	66	12	45	116
O5FD1050SA	10.50	66	12	45	116
O5FD1060SA	10.60	66	12	45	116
O5FD1070SA	10.70	66	12	45	116
O5FD1080SA	10.80	66	12	45	116
O5FD1090SA	10.90	66	12	45	116
O5FD1100SA	11.00	66	12	45	116
O5FD1110SA	11.10	72	12	45	122
O5FD1120SA	11.20	72	12	45	122
O5FD1130SA	11.30	72	12	45	122
O5FD1140SA	11.40	72	12	45	122
O5FD1150SA	11.50	72	12	45	122
O5FD1160SA	11.60	72	12	45	122
O5FD1170SA	11.70	72	12	45	122
O5FD1180SA	11.80	72	12	45	122
O5FD1190SA	11.90	72	12	45	122
O5FD1200SA	12.00	72	12	45	122
O5FD1210SA	12.10	78	14	45	128
O5FD1220SA	12.20	78	14	45	128
O5FD1230SA	12.30	78	14	45	128
O5FD1240SA	12.40	78	14	45	128
O5FD1250SA	12.50	78	14	45	128
O5FD1260SA	12.60	78	14	45	128
O5FD1270SA	12.70	78	14	45	128
O5FD1280SA	12.80	78	14	45	128
O5FD1290SA	12.90	78	14	45	128
O5FD1300SA	13.00	78	14	45	128
O5FD1310SA	13.10	84	14	45	134
O5FD1320SA	13.20	84	14	45	134
O5FD1330SA	13.30	84	14	45	134
O5FD1340SA	13.40	84	14	45	134
O5FD1350SA	13.50	84	14	45	134
O5FD1360SA	13.60	84	14	45	134
O5FD1370SA	13.70	84	14	45	134
O5FD1380SA	13.80	84	14	45	134
O5FD1390SA	13.90	84	14	45	134
O5FD1400SA	14.00	84	14	45	134
O5FD1410SA	14.10	90	16	48	143
O5FD1420SA	14.20	90	16	48	143
O5FD1430SA	14.30	90	16	48	143
O5FD1440SA	14.40	90	16	48	143
O5FD1450SA	14.50	90	16	48	143
O5FD1460SA	14.60	90	16	48	143
O5FD1470SA	14.70	90	16	48	143
O5FD1480SA	14.80	90	16	48	143
O5FD1490SA	14.90	90	16	48	143
O5FD1500SA	15.00	90	16	48	143
O5FD1510SA	15.10	96	16	48	149
O5FD1520SA	15.20	96	16	48	149
O5FD1530SA	15.30	96	16	48	149
O5FD1540SA	15.40	96	16	48	149
O5FD1550SA	15.50	96	16	48	149
O5FD1560SA	15.60	96	16	48	149
O5FD1570SA	15.70	96	16	48	149
O5FD1580SA	15.80	96	16	48	149
O5FD1590SA	15.90	96	16	48	149
O5FD1600SA	16.00	96	16	48	149
O5FD1610SA	16.10	102	18	48	155
O5FD1620SA	16.20	102	18	48	155
O5FD1630SA	16.30	102	18	48	155
O5FD1640SA	16.40	102	18	48	155
O5FD1650SA	16.50	102	18	48	155
O5FD1660SA	16.60	102	18	48	155
O5FD1670SA	16.70	102	18	48	155
O5FD1680SA	16.80	102	18	48	155
O5FD1690SA	16.90	102	18	48	155
O5FD1700SA	17.00	102	18	48	155
O5FD1710SA	17.10	108	18	48	161
O5FD1720SA	17.20	108	18	48	161
O5FD1730SA	17.30	108	18	48	161
O5FD1740SA	17.40	108	18	48	161
O5FD1750SA	17.50	108	18	48	161
O5FD1760SA	17.60	108	18	48	161
O5FD1770SA	17.70	108	18	48	161
O5FD1780SA	17.80	108	18	48	161
O5FD1790SA	17.90	108	18	48	161
O5FD1800SA	18.00	108	18	48	161
O5FD1810SA	18.10	114	20	50	169
O5FD1820SA	18.20	114	20	50	169
O5FD1830SA	18.30	114	20	50	169
O5FD1840SA	18.40	114	20	50	169
O5FD1850SA	18.50	114	20	50	169
O5FD1860SA	18.60	114	20	50	169
O5FD1870SA	18.70	114	20	50	169
O5FD1880SA	18.80	114	20	50	169
O5FD1890SA	18.90	114	20	50	169
O5FD1900SA	19.00	114	20	50	169
O5FD1910SA	19.10	120	20	50	175
O5FD1920SA	19.20	120	20	50	175
O5FD1930SA	19.30	120	20	50	175
O5FD1940SA	19.40	120	20	50	175
O5FD1950SA	19.50	120	20	50	175
O5FD1960SA	19.60	120	20	50	175
O5FD1970SA	19.70	120	20	50	175
O5FD1980SA	19.80	120	20	50	175
O5FD1990SA	19.90	120	20	50	175
O5FD2000SA	20.00	120	20	50	175
