FD 整體硬質合金鋁用直槽鉆頭5×D 基準型
刀具特點說明:
1、刀具尺寸按本公司標準制造,接受非標定制。
2、刃徑公差為M7,柄部公差為H6。
3、刀尖頂角、刀尖形式、排屑槽均針對各系列的加工特點分別設計,確保達到最優的加工效果。
FD系列整硬直槽鉆頭
鋁用無涂層/鑄鐵用有涂層
被切削材料:
系列 |
被切削材料 |
|
|||||||||||||
結構鋼 |
碳素鋼 |
合金鋼 |
預硬化鋼 |
調質鋼、模具鋼、高硬度鋼 |
不銹鋼 |
鈦合金、 |
鑄鐵 |
鋁合金 |
銅合金 |
樹脂 |
|
||||
HRC30-45 |
HRC45-55 |
HRC55-60 |
>HRC60 |
||||||||||||
FD-SA |
◎ |
○ |
|||||||||||||
FD-SE |
◎ |
|
可選類型:
3XD / 3XD 內冷 / 5XD / 5XD 內冷
尺寸范圍:
D=2.00~20.00mm
基準型訂貨號 | 刃徑 | 槽長 | 柄徑 | 柄長 | 總長 |

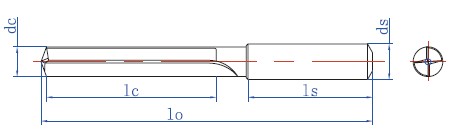

SA系列(鋁用無涂層) | dc | lc | ds | ls | lo |
5FD0300SA | 3.00 | 24 | 4 | 28 | 57 |
5FD0310SA | 3.10 | 24 | 4 | 28 | 57 |
5FD0320SA | 3.20 | 24 | 4 | 28 | 57 |
5FD0330SA | 3.30 | 24 | 4 | 28 | 57 |
5FD0340SA | 3.40 | 24 | 4 | 28 | 57 |
5FD0350SA | 3.50 | 24 | 4 | 28 | 57 |
5FD0360SA | 3.60 | 24 | 4 | 28 | 57 |
5FD0370SA | 3.70 | 24 | 4 | 28 | 57 |
5FD0380SA | 3.80 | 24 | 4 | 28 | 57 |
5FD0390SA | 3.90 | 24 | 4 | 28 | 57 |
5FD0400SA | 4.00 | 24 | 4 | 28 | 57 |
5FD0410SA | 4.10 | 30 | 6 | 36 | 71 |
5FD0420SA | 4.20 | 30 | 6 | 36 | 71 |
5FD0430SA | 4.30 | 30 | 6 | 36 | 71 |
5FD0440SA | 4.40 | 30 | 6 | 36 | 71 |
5FD0450SA | 4.50 | 30 | 6 | 36 | 71 |
5FD0460SA | 4.60 | 30 | 6 | 36 | 71 |
5FD0470SA | 4.70 | 30 | 6 | 36 | 71 |
5FD0480SA | 4.80 | 30 | 6 | 36 | 71 |
5FD0490SA | 4.90 | 30 | 6 | 36 | 71 |
5FD0500SA | 5.00 | 30 | 6 | 36 | 71 |
5FD0510SA | 5.10 | 36 | 6 | 36 | 77 |
5FD0520SA | 5.20 | 36 | 6 | 36 | 77 |
5FD0530SA | 5.30 | 36 | 6 | 36 | 77 |
5FD0540SA | 5.40 | 36 | 6 | 36 | 77 |
5FD0550SA | 5.50 | 36 | 6 | 36 | 77 |
5FD0560SA | 5.60 | 36 | 6 | 36 | 77 |
5FD0570SA | 5.70 | 36 | 6 | 36 | 77 |
5FD0580SA | 5.80 | 36 | 6 | 36 | 77 |
5FD0590SA | 5.90 | 36 | 6 | 36 | 77 |
5FD0600SA | 6.00 | 36 | 6 | 36 | 77 |
5FD0610SA | 6.10 | 42 | 8 | 36 | 83 |
5FD0620SA | 6.20 | 42 | 8 | 36 | 83 |
5FD0630SA | 6.30 | 42 | 8 | 36 | 83 |
5FD0640SA | 6.40 | 42 | 8 | 36 | 83 |
5FD0650SA | 6.50 | 42 | 8 | 36 | 83 |
5FD0660SA | 6.60 | 42 | 8 | 36 | 83 |
5FD0670SA | 6.70 | 42 | 8 | 36 | 83 |
5FD0680SA | 6.80 | 42 | 8 | 36 | 83 |
5FD0690SA | 6.90 | 42 | 8 | 36 | 83 |
5FD0700SA | 7.00 | 42 | 8 | 36 | 83 |
5FD0710SA | 7.10 | 48 | 8 | 36 | 89 |
5FD0720SA | 7.20 | 48 | 8 | 36 | 89 |
5FD0730SA | 7.30 | 48 | 8 | 36 | 89 |
5FD0740SA | 7.40 | 48 | 8 | 36 | 89 |
5FD0750SA | 7.50 | 48 | 8 | 36 | 89 |
5FD0760SA | 7.60 | 48 | 8 | 36 | 89 |
5FD0770SA | 7.70 | 48 | 8 | 36 | 89 |
5FD0780SA | 7.80 | 48 | 8 | 36 | 89 |
5FD0790SA | 7.90 | 48 | 8 | 36 | 89 |
5FD0800SA | 8.00 | 48 | 8 | 36 | 89 |
5FD0810SA | 8.10 | 54 | 10 | 40 | 99 |
5FD0820SA | 8.20 | 54 | 10 | 40 | 99 |
5FD0830SA | 8.30 | 54 | 10 | 40 | 99 |
5FD0840SA | 8.40 | 54 | 10 | 40 | 99 |
5FD0850SA | 8.50 | 54 | 10 | 40 | 99 |
5FD0860SA | 8.60 | 54 | 10 | 40 | 99 |
5FD0870SA | 8.70 | 54 | 10 | 40 | 99 |
5FD0880SA | 8.80 | 54 | 10 | 40 | 99 |
5FD0890SA | 8.90 | 54 | 10 | 40 | 99 |
5FD0900SA | 9.00 | 54 | 10 | 40 | 99 |
5FD0910SA | 9.10 | 60 | 10 | 40 | 105 |
5FD0920SA | 9.20 | 60 | 10 | 40 | 105 |
5FD0930SA | 9.30 | 60 | 10 | 40 | 105 |
5FD0940SA | 9.40 | 60 | 10 | 40 | 105 |
5FD0950SA | 9.50 | 60 | 10 | 40 | 105 |
5FD0960SA | 9.60 | 60 | 10 | 40 | 105 |
5FD0970SA | 9.70 | 60 | 10 | 40 | 105 |
5FD0980SA | 9.80 | 60 | 10 | 40 | 105 |
5FD0990SA | 9.90 | 60 | 10 | 40 | 105 |
5FD1000SA | 10.00 | 60 | 10 | 40 | 105 |
5FD1010SA | 10.10 | 66 | 12 | 45 | 116 |
5FD1020SA | 10.20 | 66 | 12 | 45 | 116 |
5FD1030SA | 10.30 | 66 | 12 | 45 | 116 |
5FD1040SA | 10.40 | 66 | 12 | 45 | 116 |
5FD1050SA | 10.50 | 66 | 12 | 45 | 116 |
5FD1060SA | 10.60 | 66 | 12 | 45 | 116 |
5FD1070SA | 10.70 | 66 | 12 | 45 | 116 |
5FD1080SA | 10.80 | 66 | 12 | 45 | 116 |
5FD1090SA | 10.90 | 66 | 12 | 45 | 116 |
5FD1100SA | 11.00 | 66 | 12 | 45 | 116 |
5FD1110SA | 11.10 | 72 | 12 | 45 | 122 |
5FD1120SA | 11.20 | 72 | 12 | 45 | 122 |
5FD1130SA | 11.30 | 72 | 12 | 45 | 122 |
5FD1140SA | 11.40 | 72 | 12 | 45 | 122 |
5FD1150SA | 11.50 | 72 | 12 | 45 | 122 |
5FD1160SA | 11.60 | 72 | 12 | 45 | 122 |
5FD1170SA | 11.70 | 72 | 12 | 45 | 122 |
5FD1180SA | 11.80 | 72 | 12 | 45 | 122 |
5FD1190SA | 11.90 | 72 | 12 | 45 | 122 |
5FD1200SA | 12.00 | 72 | 12 | 45 | 122 |
5FD1210SA | 12.10 | 78 | 14 | 45 | 128 |
5FD1220SA | 12.20 | 78 | 14 | 45 | 128 |
5FD1230SA | 12.30 | 78 | 14 | 45 | 128 |
5FD1240SA | 12.40 | 78 | 14 | 45 | 128 |
5FD1250SA | 12.50 | 78 | 14 | 45 | 128 |
5FD1260SA | 12.60 | 78 | 14 | 45 | 128 |
5FD1270SA | 12.70 | 78 | 14 | 45 | 128 |
5FD1280SA | 12.80 | 78 | 14 | 45 | 128 |
5FD1290SA | 12.90 | 78 | 14 | 45 | 128 |
5FD1300SA | 13.00 | 78 | 14 | 45 | 128 |
5FD1310SA | 13.10 | 84 | 14 | 45 | 134 |
5FD1320SA | 13.20 | 84 | 14 | 45 | 134 |
5FD1330SA | 13.30 | 84 | 14 | 45 | 134 |
5FD1340SA | 13.40 | 84 | 14 | 45 | 134 |
5FD1350SA | 13.50 | 84 | 14 | 45 | 134 |
5FD1360SA | 13.60 | 84 | 14 | 45 | 134 |
5FD1370SA | 13.70 | 84 | 14 | 45 | 134 |
5FD1380SA | 13.80 | 84 | 14 | 45 | 134 |
5FD1390SA | 13.90 | 84 | 14 | 45 | 134 |
5FD1400SA | 14.00 | 84 | 14 | 45 | 134 |
5FD1410SA | 14.10 | 90 | 16 | 48 | 143 |
5FD1420SA | 14.20 | 90 | 16 | 48 | 143 |
5FD1430SA | 14.30 | 90 | 16 | 48 | 143 |
5FD1440SA | 14.40 | 90 | 16 | 48 | 143 |
5FD1450SA | 14.50 | 90 | 16 | 48 | 143 |
5FD1460SA | 14.60 | 90 | 16 | 48 | 143 |
5FD1470SA | 14.70 | 90 | 16 | 48 | 143 |
5FD1480SA | 14.80 | 90 | 16 | 48 | 143 |
5FD1490SA | 14.90 | 90 | 16 | 48 | 143 |
5FD1500SA | 15.00 | 90 | 16 | 48 | 143 |
5FD1510SA | 15.10 | 96 | 16 | 48 | 149 |
5FD1520SA | 15.20 | 96 | 16 | 48 | 149 |
5FD1530SA | 15.30 | 96 | 16 | 48 | 149 |
5FD1540SA | 15.40 | 96 | 16 | 48 | 149 |
5FD1550SA | 15.50 | 96 | 16 | 48 | 149 |
5FD1560SA | 15.60 | 96 | 16 | 48 | 149 |
5FD1570SA | 15.70 | 96 | 16 | 48 | 149 |
5FD1580SA | 15.80 | 96 | 16 | 48 | 149 |
5FD1590SA | 15.90 | 96 | 16 | 48 | 149 |
5FD1600SA | 16.00 | 96 | 16 | 48 | 149 |
5FD1610SA | 16.10 | 102 | 18 | 48 | 155 |
5FD1620SA | 16.20 | 102 | 18 | 48 | 155 |
5FD1630SA | 16.30 | 102 | 18 | 48 | 155 |
5FD1640SA | 16.40 | 102 | 18 | 48 | 155 |
5FD1650SA | 16.50 | 102 | 18 | 48 | 155 |
5FD1660SA | 16.60 | 102 | 18 | 48 | 155 |
5FD1670SA | 16.70 | 102 | 18 | 48 | 155 |
5FD1680SA | 16.80 | 102 | 18 | 48 | 155 |
5FD1690SA | 16.90 | 102 | 18 | 48 | 155 |
5FD1700SA | 17.00 | 102 | 18 | 48 | 155 |
5FD1710SA | 17.10 | 108 | 18 | 48 | 161 |
5FD1720SA | 17.20 | 108 | 18 | 48 | 161 |
5FD1730SA | 17.30 | 108 | 18 | 48 | 161 |
5FD1740SA | 17.40 | 108 | 18 | 48 | 161 |
5FD1750SA | 17.50 | 108 | 18 | 48 | 161 |
5FD1760SA | 17.60 | 108 | 18 | 48 | 161 |
5FD1770SA | 17.70 | 108 | 18 | 48 | 161 |
5FD1780SA | 17.80 | 108 | 18 | 48 | 161 |
5FD1790SA | 17.90 | 108 | 18 | 48 | 161 |
5FD1800SA | 18.00 | 108 | 18 | 48 | 161 |
5FD1810SA | 18.10 | 114 | 20 | 50 | 169 |
5FD1820SA | 18.20 | 114 | 20 | 50 | 169 |
5FD1830SA | 18.30 | 114 | 20 | 50 | 169 |
5FD1840SA | 18.40 | 114 | 20 | 50 | 169 |
5FD1850SA | 18.50 | 114 | 20 | 50 | 169 |
5FD1860SA | 18.60 | 114 | 20 | 50 | 169 |
5FD1870SA | 18.70 | 114 | 20 | 50 | 169 |
5FD1880SA | 18.80 | 114 | 20 | 50 | 169 |
5FD1890SA | 18.90 | 114 | 20 | 50 | 169 |
5FD1900SA | 19.00 | 114 | 20 | 50 | 169 |
5FD1910SA | 19.10 | 120 | 20 | 50 | 175 |
5FD1920SA | 19.20 | 120 | 20 | 50 | 175 |
5FD1930SA | 19.30 | 120 | 20 | 50 | 175 |
5FD1940SA | 19.40 | 120 | 20 | 50 | 175 |
5FD1950SA | 19.50 | 120 | 20 | 50 | 175 |
5FD1960SA | 19.60 | 120 | 20 | 50 | 175 |
5FD1970SA | 19.70 | 120 | 20 | 50 | 175 |
5FD1980SA | 19.80 | 120 | 20 | 50 | 175 |
5FD1990SA | 19.90 | 120 | 20 | 50 | 175 |
5FD2000SA | 20.00 | 120 | 20 | 50 | 175 |
