FD鋁合金加工用直槽鉆頭

3FD-SA

FD 整體硬質合金鋁用直槽鉆頭3×D 基準型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為M7，柄部公差為H6。

3、刀尖頂角、刀尖形式、排屑槽均針對各系列的加工特點分別設計，確保達到最優的加工效果。

產品特色
產品尺寸
加工視頻

FD系列整硬直槽鉆頭

鋁用無涂層/鑄鐵用有涂層

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷

尺寸范圍：

D=2.00~20.00mm

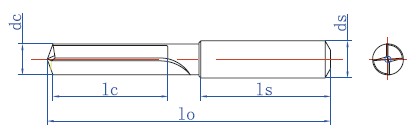

基準型訂貨號	刃徑	槽長	柄徑	柄長	總長
SA系列（鋁用無涂層）	dc	lc	ds	ls	lo
3FD0300SA	3.00	16	4	28	49
3FD0310SA	3.10	16	4	28	49
3FD0320SA	3.20	16	4	28	49
3FD0330SA	3.30	16	4	28	49
3FD0340SA	3.40	16	4	28	49
3FD0350SA	3.50	16	4	28	49
3FD0360SA	3.60	16	4	28	49
3FD0370SA	3.70	16	4	28	49
3FD0380SA	3.80	16	4	28	49
3FD0390SA	3.90	16	4	28	49
3FD0400SA	4.00	16	4	28	49
3FD0410SA	4.10	20	6	36	61
3FD0420SA	4.20	20	6	36	61
3FD0430SA	4.30	20	6	36	61
3FD0440SA	4.40	20	6	36	61
3FD0450SA	4.50	20	6	36	61
3FD0460SA	4.60	20	6	36	61
3FD0470SA	4.70	20	6	36	61
3FD0480SA	4.80	20	6	36	61
3FD0490SA	4.90	20	6	36	61
3FD0500SA	5.00	20	6	36	61
3FD0510SA	5.10	24	6	36	65
3FD0520SA	5.20	24	6	36	65
3FD0530SA	5.30	24	6	36	65
3FD0540SA	5.40	24	6	36	65
3FD0550SA	5.50	24	6	36	65
3FD0560SA	5.60	24	6	36	65
3FD0570SA	5.70	24	6	36	65
3FD0580SA	5.80	24	6	36	65
3FD0590SA	5.90	24	6	36	65
3FD0600SA	6.00	24	6	36	65
3FD0610SA	6.10	28	8	36	69
3FD0620SA	6.20	28	8	36	69
3FD0630SA	6.30	28	8	36	69
3FD0640SA	6.40	28	8	36	69
3FD0650SA	6.50	28	8	36	69
3FD0660SA	6.60	28	8	36	69
3FD0670SA	6.70	28	8	36	69
3FD0680SA	6.80	28	8	36	69
3FD0690SA	6.90	28	8	36	69
3FD0700SA	7.00	28	8	36	69
3FD0710SA	7.10	32	8	36	73
3FD0720SA	7.20	32	8	36	73
3FD0730SA	7.30	32	8	36	73
3FD0740SA	7.40	32	8	36	73
3FD0750SA	7.50	32	8	36	73
3FD0760SA	7.60	32	8	36	73
3FD0770SA	7.70	32	8	36	73
3FD0780SA	7.80	32	8	36	73
3FD0790SA	7.90	32	8	36	73
3FD0800SA	8.00	32	8	36	73
3FD0810SA	8.10	36	10	40	81
3FD0820SA	8.20	36	10	40	81
3FD0830SA	8.30	36	10	40	81
3FD0840SA	8.40	36	10	40	81
3FD0850SA	8.50	36	10	40	81
3FD0860SA	8.60	36	10	40	81
3FD0870SA	8.70	36	10	40	81
3FD0880SA	8.80	36	10	40	81
3FD0890SA	8.90	36	10	40	81
3FD0900SA	9.00	36	10	40	81
3FD0910SA	9.10	40	10	40	85
3FD0920SA	9.20	40	10	40	85
3FD0930SA	9.30	40	10	40	85
3FD0940SA	9.40	40	10	40	85
3FD0950SA	9.50	40	10	40	85
3FD0960SA	9.60	40	10	40	85
3FD0970SA	9.70	40	10	40	85
3FD0980SA	9.80	40	10	40	85
3FD0990SA	9.90	40	10	40	85
3FD1000SA	10.00	40	10	40	85
3FD1010SA	10.10	44	12	45	94
3FD1020SA	10.20	44	12	45	94
3FD1030SA	10.30	44	12	45	94
3FD1040SA	10.40	44	12	45	94
3FD1050SA	10.50	44	12	45	94
3FD1060SA	10.60	44	12	45	94
3FD1070SA	10.70	44	12	45	94
3FD1080SA	10.80	44	12	45	94
3FD1090SA	10.90	44	12	45	94
3FD1100SA	11.00	44	12	45	94
3FD1110SA	11.10	48	12	45	98
3FD1120SA	11.20	48	12	45	98
3FD1130SA	11.30	48	12	45	98
3FD1140SA	11.40	48	12	45	98
3FD1150SA	11.50	48	12	45	98
3FD1160SA	11.60	48	12	45	98
3FD1170SA	11.70	48	12	45	98
3FD1180SA	11.80	48	12	45	98
3FD1190SA	11.90	48	12	45	98
3FD1200SA	12.00	48	12	45	98
3FD1210SA	12.10	52	14	45	102
3FD1220SA	12.20	52	14	45	102
3FD1230SA	12.30	52	14	45	102
3FD1240SA	12.40	52	14	45	102
3FD1250SA	12.50	52	14	45	102
3FD1260SA	12.60	52	14	45	102
3FD1270SA	12.70	52	14	45	102
3FD1280SA	12.80	52	14	45	102
3FD1290SA	12.90	52	14	45	102
3FD1300SA	13.00	52	14	45	102
3FD1310SA	13.10	56	14	45	106
3FD1320SA	13.20	56	14	45	106
3FD1330SA	13.30	56	14	45	106
3FD1340SA	13.40	56	14	45	106
3FD1350SA	13.50	56	14	45	106
3FD1360SA	13.60	56	14	45	106
3FD1370SA	13.70	56	14	45	106
3FD1380SA	13.80	56	14	45	106
3FD1390SA	13.90	56	14	45	106
3FD1400SA	14.00	56	14	45	106
3FD1410SA	14.10	60	16	48	113
3FD1420SA	14.20	60	16	48	113
3FD1430SA	14.30	60	16	48	113
3FD1440SA	14.40	60	16	48	113
3FD1450SA	14.50	60	16	48	113
3FD1460SA	14.60	60	16	48	113
3FD1470SA	14.70	60	16	48	113
3FD1480SA	14.80	60	16	48	113
3FD1490SA	14.90	60	16	48	113
3FD1500SA	15.00	60	16	48	113
3FD1510SA	15.10	64	16	48	117
3FD1520SA	15.20	64	16	48	117
3FD1530SA	15.30	64	16	48	117
3FD1540SA	15.40	64	16	48	117
3FD1550SA	15.50	64	16	48	117
3FD1560SA	15.60	64	16	48	117
3FD1570SA	15.70	64	16	48	117
3FD1580SA	15.80	64	16	48	117
3FD1590SA	15.90	64	16	48	117
3FD1600SA	16.00	64	16	48	117
3FD1610SA	16.10	68	18	48	121
3FD1620SA	16.20	68	18	48	121
3FD1630SA	16.30	68	18	48	121
3FD1640SA	16.40	68	18	48	121
3FD1650SA	16.50	68	18	48	121
3FD1660SA	16.60	68	18	48	121
3FD1670SA	16.70	68	18	48	121
3FD1680SA	16.80	68	18	48	121
3FD1690SA	16.90	68	18	48	121
3FD1700SA	17.00	68	18	48	121
3FD1710SA	17.10	72	18	48	125
3FD1720SA	17.20	72	18	48	125
3FD1730SA	17.30	72	18	48	125
3FD1740SA	17.40	72	18	48	125
3FD1750SA	17.50	72	18	48	125
3FD1760SA	17.60	72	18	48	125
3FD1770SA	17.70	72	18	48	125
3FD1780SA	17.80	72	18	48	125
3FD1790SA	17.90	72	18	48	125
3FD1800SA	18.00	72	18	48	125
3FD1810SA	18.10	76	20	50	131
3FD1820SA	18.20	76	20	50	131
3FD1830SA	18.30	76	20	50	131
3FD1840SA	18.40	76	20	50	131
3FD1850SA	18.50	76	20	50	131
3FD1860SA	18.60	76	20	50	131
3FD1870SA	18.70	76	20	50	131
3FD1880SA	18.80	76	20	50	131
3FD1890SA	18.90	76	20	50	131
3FD1900SA	19.00	76	20	50	131
3FD1910SA	19.10	80	20	50	135
3FD1920SA	19.20	80	20	50	135
3FD1930SA	19.30	80	20	50	135
3FD1940SA	19.40	80	20	50	135
3FD1950SA	19.50	80	20	50	135
3FD1960SA	19.60	80	20	50	135
3FD1970SA	19.70	80	20	50	135
3FD1980SA	19.80	80	20	50	135
3FD1990SA	19.90	80	20	50	135
3FD2000SA	20.00	80	20	50	135
