SMC 整體硬質合金四刃光面圓鼻銑刀（不等分割）--高性能型
刀具特點說明:
1、刀具尺寸按本公司標準制造，接受非標定制；
2、刃徑公差為+0.02/0；圓角R公差為+0.02/-0.01；柄部尺寸公差為h6；
3、底刃均為對稱刃設計，有刃傾角；
4、螺旋角度為36~37度；
6、加工面的光潔度高，特別是加工槽和側面。
SMC 系列光面銑刀----不等分割，不等導程
產品特點:
□ 不等分割、不等距導程，通過連續變化外周刃的分割比例，有效抑制了周期性應力與細微的振動。
□ 針對加工材料的不同，和加工狀況不同，設計不同的分割比例。
□ 加工時切削頻率不固定，可以避免共振產生，降低振刀現象。
□ 加工表面光潔度好。
可加工材料:
|
系列 |
被切削材料 |
|
|||||||||||||
|
結構鋼 |
碳素鋼 |
合金鋼 |
預硬化鋼 |
調質鋼、模具鋼、高硬度鋼 |
不銹鋼 |
鈦合金、 |
鑄鐵 |
鋁合金 |
銅合金 |
樹脂 |
|
||||
|
HRC30-45 |
HRC45-55 |
HRC55-60 |
>HRC60 |
||||||||||||
| STA |
◎ |
◎ |
◎ |
◎ |
○ |
○ |
|
|
○ |
○ |
◎ |
|
○ |
|
|
|
HTA |
◎ | ◎ | ◎ | ◎ | ◎ | ○ | ◎ | ○ | ◎ |
○ |
○ |
|
|||
可選類型和尺寸范圍：
四刃平頭光面銑刀UTM4：3.0~20.0mm 四刃光面圓鼻銑刀RUTM4：6.0~12.0mm
長徑型四刃平頭光面銑刀LUTM4：3.0~20.0mm 六刃平頭光面銑刀UTM6：6.0~12.0mm

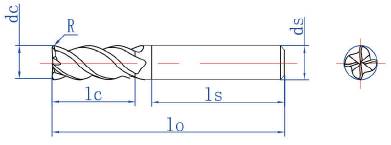

| 高性能型訂貨號 | 刃徑 | 刃長 | 柄徑 | 總長 | 刀尖角 |
| HTA系列（涂層） | dc | lc | ds | lo | R |
| RUTM4061503HTA | 6.0 | 15 | 6 | 50 | 0.3 |
| RUTM4061505HTA | 6.0 | 15 | 6 | 50 | 0.5 |
| RUTM4061510HTA | 6.0 | 15 | 6 | 50 | 1.0 |
| RUTM4062403HTA | 6.0 | 24 | 6 | 60 | 0.3 |
| RUTM4062405HTA | 6.0 | 24 | 6 | 60 | 0.5 |
| RUTM4062410HTA | 6.0 | 24 | 6 | 60 | 1.0 |
| RUTM4082003HTA | 8.0 | 20 | 8 | 60 | 0.3 |
| RUTM4082005HTA | 8.0 | 20 | 8 | 60 | 0.5 |
| RUTM4082010HTA | 8.0 | 20 | 8 | 60 | 1.0 |
| RUTM4083203HTA | 8.0 | 32 | 8 | 80 | 0.3 |
| RUTM4083205HTA | 8.0 | 32 | 8 | 80 | 0.5 |
| RUTM4083210HTA | 8.0 | 32 | 8 | 80 | 1.0 |
| RUTM4102503HTA | 10.0 | 25 | 10 | 70 | 0.3 |
| RUTM4102505HTA | 10.0 | 25 | 10 | 70 | 0.5 |
| RUTM4102510HTA | 10.0 | 25 | 10 | 70 | 1.0 |
| RUTM4102520HTA | 10.0 | 25 | 10 | 70 | 2.0 |
| RUTM4104003HTA | 10.0 | 40 | 10 | 90 | 0.3 |
| RUTM4104005HTA | 10.0 | 40 | 10 | 90 | 0.5 |
| RUTM4104010HTA | 10.0 | 40 | 10 | 90 | 1.0 |
| RUTM4104020HTA | 10.0 | 40 | 10 | 90 | 2.0 |
| RUTM4123005HTA | 12.0 | 30 | 12 | 75 | 0.5 |
| RUTM4123010HTA | 12.0 | 30 | 12 | 75 | 1.0 |
| RUTM4123020HTA | 12.0 | 30 | 12 | 75 | 2.0 |
| RUTM4123030HTA | 12.0 | 30 | 12 | 75 | 3.0 |
| RUTM4124805HTA | 12.0 | 48 | 12 | 100 | 0.5 |
| RUTM4124810HTA | 12.0 | 48 | 12 | 100 | 1.0 |
| RUTM4124820HTA | 12.0 | 48 | 12 | 100 | 2.0 |
| RUTM4124830HTA | 12.0 | 48 | 12 | 100 | 3.0 |
|
RUTM4143510HTA |
14.0 | 35 | 14 | 90 | 1 |
|
RUTM4143520HTA |
14.0 |
35 |
14 |
90 |
2 |
|
RUTM4143530HTA |
14.0 |
35 |
14 |
90 |
3 |
|
RUTM4145610HTA |
14.0 |
56 |
14 |
110 | 1 |
|
RUTM4145620HTA |
14.0 |
56 |
14 |
110 |
2 |
|
RUTM4145620HTA |
14.0 |
56 |
14 |
110 | 3 |
| RUTM4164030HTA | 16.0 | 40 | 16 | 90 | 1.0 |
| RUTM4164020HTA | 16.0 | 40 | 16 | 90 | 2.0 |
| RUTM4164030HTA | 16.0 | 40 | 16 | 90 | 3.0 |
| RUTM4166410HTA | 16.0 | 64 | 16 | 120 | 1.0 |
| RUTM4166420HTA | 16.0 | 64 | 16 | 120 | 2.0 |
| RUTM4166430HTA | 16.0 | 64 | 16 | 120 | 3.0 |
| RUTM4205010HTA | 20.0 | 50 | 20 | 100 | 1.0 |
| RUTM4205020HTA | 20.0 | 50 | 20 | 100 | 2.0 |
| RUTM4205030HTA | 20.0 | 50 | 20 | 100 | 3.0 |
| RUTM4208010HTA | 20.0 | 80 | 20 | 140 | 1.0 |
| RUTM4208020HTA | 20.0 | 80 | 20 | 140 | 2.0 |
| RUTM4208030HTA | 20.0 | 80 | 20 | 140 | 3.0 |
