3FD-SE

FD 整體硬質鑄鐵用直槽鉆頭3×D 高性能型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為M7，柄部公差為H6。

3、刀尖頂角、刀尖形式、排屑槽均針對各系列的加工特點分別設計，確保達到最優的加工效果。

  • 產品特色
  • 產品尺寸
  • 加工視頻

FD系列整硬直槽鉆頭

鋁用無涂層/鑄鐵用有涂層



被切削材料:

系列

被切削材料



結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂



HRC30-45

HRC45-55

HRC55-60

>HRC60

FD-SA

◎

○

FD-SE

◎



(◎ 最適合  ○ 適合)




可選類型：

3XD  /  3XD 內冷  /  5XD  /  5XD 內冷



尺寸范圍：

D=2.00~20.00mm

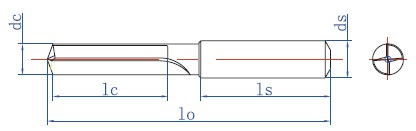

高性能型訂貨號 刃徑 槽長 柄徑 柄長 總長
SE系列（鑄鐵用有涂層） dc  lc  ds  ls  lo
3FD0300SE 3.00 16 4 28 49
3FD0310SE 3.10 16 4 28 49
3FD0320SE 3.20 16 4 28 49
3FD0330SE 3.30 16 4 28 49
3FD0340SE 3.40 16 4 28 49
3FD0350SE 3.50 16 4 28 49
3FD0360SE 3.60 16 4 28 49
3FD0370SE 3.70 16 4 28 49
3FD0380SE 3.80 16 4 28 49
3FD0390SE 3.90 16 4 28 49
3FD0400SE 4.00 16 4 28 49
3FD0410SE 4.10 20 6 36 61
3FD0420SE 4.20 20 6 36 61
3FD0430SE 4.30 20 6 36 61
3FD0440SE 4.40 20 6 36 61
3FD0450SE 4.50 20 6 36 61
3FD0460SE 4.60 20 6 36 61
3FD0470SE 4.70 20 6 36 61
3FD0480SE 4.80 20 6 36 61
3FD0490SE 4.90 20 6 36 61
3FD0500SE 5.00 20 6 36 61
3FD0510SE 5.10 24 6 36 65
3FD0520SE 5.20 24 6 36 65
3FD0530SE 5.30 24 6 36 65
3FD0540SE 5.40 24 6 36 65
3FD0550SE 5.50 24 6 36 65
3FD0560SE 5.60 24 6 36 65
3FD0570SE 5.70 24 6 36 65
3FD0580SE 5.80 24 6 36 65
3FD0590SE 5.90 24 6 36 65
3FD0600SE 6.00 24 6 36 65
3FD0610SE 6.10 28 8 36 69
3FD0620SE 6.20 28 8 36 69
3FD0630SE 6.30 28 8 36 69
3FD0640SE 6.40 28 8 36 69
3FD0650SE 6.50 28 8 36 69
3FD0660SE 6.60 28 8 36 69
3FD0670SE 6.70 28 8 36 69
3FD0680SE 6.80 28 8 36 69
3FD0690SE 6.90 28 8 36 69
3FD0700SE 7.00 28 8 36 69
3FD0710SE 7.10 32 8 36 73
3FD0720SE 7.20 32 8 36 73
3FD0730SE 7.30 32 8 36 73
3FD0740SE 7.40 32 8 36 73
3FD0750SE 7.50 32 8 36 73
3FD0760SE 7.60 32 8 36 73
3FD0770SE 7.70 32 8 36 73
3FD0780SE 7.80 32 8 36 73
3FD0790SE 7.90 32 8 36 73
3FD0800SE 8.00 32 8 36 73
3FD0810SE 8.10 36 10 40 81
3FD0820SE 8.20 36 10 40 81
3FD0830SE 8.30 36 10 40 81
3FD0840SE 8.40 36 10 40 81
3FD0850SE 8.50 36 10 40 81
3FD0860SE 8.60 36 10 40 81
3FD0870SE 8.70 36 10 40 81
3FD0880SE 8.80 36 10 40 81
3FD0890SE 8.90 36 10 40 81
3FD0900SE 9.00 36 10 40 81
3FD0910SE 9.10 40 10 40 85
3FD0920SE 9.20 40 10 40 85
3FD0930SE 9.30 40 10 40 85
3FD0940SE 9.40 40 10 40 85
3FD0950SE 9.50 40 10 40 85
3FD0960SE 9.60 40 10 40 85
3FD0970SE 9.70 40 10 40 85
3FD0980SE 9.80 40 10 40 85
3FD0990SE 9.90 40 10 40 85
3FD1000SE 10.00 40 10 40 85
3FD1010SE 10.10 44 12 45 94
3FD1020SE 10.20 44 12 45 94
3FD1030SE 10.30 44 12 45 94
3FD1040SE 10.40 44 12 45 94
3FD1050SE 10.50 44 12 45 94
3FD1060SE 10.60 44 12 45 94
3FD1070SE 10.70 44 12 45 94
3FD1080SE 10.80 44 12 45 94
3FD1090SE 10.90 44 12 45 94
3FD1100SE 11.00 44 12 45 94
3FD1110SE 11.10 48 12 45 98
3FD1120SE 11.20 48 12 45 98
3FD1130SE 11.30 48 12 45 98
3FD1140SE 11.40 48 12 45 98
3FD1150SE 11.50 48 12 45 98
3FD1160SE 11.60 48 12 45 98
3FD1170SE 11.70 48 12 45 98
3FD1180SE 11.80 48 12 45 98
3FD1190SE 11.90 48 12 45 98
3FD1200SE 12.00 48 12 45 98
3FD1210SE 12.10 52 14 45 102
3FD1220SE 12.20 52 14 45 102
3FD1230SE 12.30 52 14 45 102
3FD1240SE 12.40 52 14 45 102
3FD1250SE 12.50 52 14 45 102
3FD1260SE 12.60 52 14 45 102
3FD1270SE 12.70 52 14 45 102
3FD1280SE 12.80 52 14 45 102
3FD1290SE 12.90 52 14 45 102
3FD1300SE 13.00 52 14 45 102
3FD1310SE 13.10 56 14 45 106
3FD1320SE 13.20 56 14 45 106
3FD1330SE 13.30 56 14 45 106
3FD1340SE 13.40 56 14 45 106
3FD1350SE 13.50 56 14 45 106
3FD1360SE 13.60 56 14 45 106
3FD1370SE 13.70 56 14 45 106
3FD1380SE 13.80 56 14 45 106
3FD1390SE 13.90 56 14 45 106
3FD1400SE 14.00 56 14 45 106
3FD1410SE 14.10 60 16 48 113
3FD1420SE 14.20 60 16 48 113
3FD1430SE 14.30 60 16 48 113
3FD1440SE 14.40 60 16 48 113
3FD1450SE 14.50 60 16 48 113
3FD1460SE 14.60 60 16 48 113
3FD1470SE 14.70 60 16 48 113
3FD1480SE 14.80 60 16 48 113
3FD1490SE 14.90 60 16 48 113
3FD1500SE 15.00 60 16 48 113
3FD1510SE 15.10 64 16 48 117
3FD1520SE 15.20 64 16 48 117
3FD1530SE 15.30 64 16 48 117
3FD1540SE 15.40 64 16 48 117
3FD1550SE 15.50 64 16 48 117
3FD1560SE 15.60 64 16 48 117
3FD1570SE 15.70 64 16 48 117
3FD1580SE 15.80 64 16 48 117
3FD1590SE 15.90 64 16 48 117
3FD1600SE 16.00 64 16 48 117
3FD1610SE 16.10 68 18 48 121
3FD1620SE 16.20 68 18 48 121
3FD1630SE 16.30 68 18 48 121
3FD1640SE 16.40 68 18 48 121
3FD1650SE 16.50 68 18 48 121
3FD1660SE 16.60 68 18 48 121
3FD1670SE 16.70 68 18 48 121
3FD1680SE 16.80 68 18 48 121
3FD1690SE 16.90 68 18 48 121
3FD1700SE 17.00 68 18 48 121
3FD1710SE 17.10 72 18 48 125
3FD1720SE 17.20 72 18 48 125
3FD1730SE 17.30 72 18 48 125
3FD1740SE 17.40 72 18 48 125
3FD1750SE 17.50 72 18 48 125
3FD1760SE 17.60 72 18 48 125
3FD1770SE 17.70 72 18 48 125
3FD1780SE 17.80 72 18 48 125
3FD1790SE 17.90 72 18 48 125
3FD1800SE 18.00 72 18 48 125
3FD1810SE 18.10 76 20 50 131
3FD1820SE 18.20 76 20 50 131
3FD1830SE 18.30 76 20 50 131
3FD1840SE 18.40 76 20 50 131
3FD1850SE 18.50 76 20 50 131
3FD1860SE 18.60 76 20 50 131
3FD1870SE 18.70 76 20 50 131
3FD1880SE 18.80 76 20 50 131
3FD1890SE 18.90 76 20 50 131
3FD1900SE 19.00 76 20 50 131
3FD1910SE 19.10 80 20 50 135
3FD1920SE 19.20 80 20 50 135
3FD1930SE 19.30 80 20 50 135
3FD1940SE 19.40 80 20 50 135
3FD1950SE 19.50 80 20 50 135
3FD1960SE 19.60 80 20 50 135
3FD1970SE 19.70 80 20 50 135
3FD1980SE 19.80 80 20 50 135
3FD1990SE 19.90 80 20 50 135
3FD2000SE 20.00 80 20 50 135
