FSD整體硬質合金平底鉆頭

FSD-SE

FSD 整體硬質合金平底鉆頭

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角為180°，刀尖形式及排屑槽形式為特殊設計，定心效果好，排屑通暢，在斜面鉆孔、圓弧面鉆孔、薄板鉆孔和抑制出口毛刺等方面都有很好的表現。

產品特色
產品尺寸
加工視頻

FSD系列高性能平底鉆頭

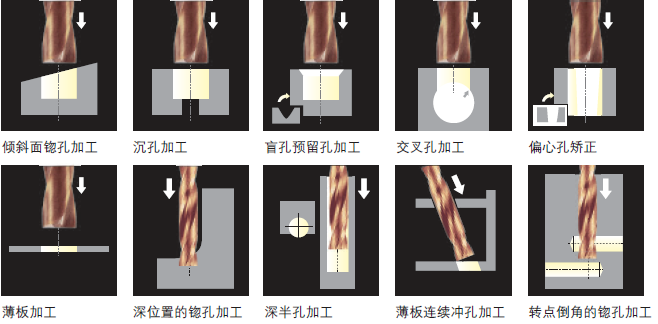

多場合適用

產品特點:

□ 刀尖頂尖設計為180°。

□ 刀尖形式及排屑槽形式為特殊設計，定心效果好，排屑通暢。

□ 一把刀具可實現多種用途，在斜面鉆孔、圓弧面鉆孔、薄板鉆孔和抑制出口毛刺等方面都有很好的表現。

應用場合:

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

FSD-SE

◎

○

(◎ 最適合 ○ 適合)

尺寸范圍：

D=3.00~20.00mm

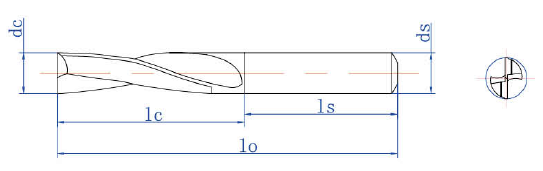

基準型訂貨號(涂層）	刃徑	槽長	柄徑	柄長	總長
基準型訂貨號(涂層）	dc	lc	ds	ls	lo
FSD0300SE	3.00	16	4	28	49
FSD0310SE	3.10	16	4	28	49
FSD0320SE	3.20	16	4	28	49
FSD0330SE	3.30	16	4	28	49
FSD0340SE	3.40	16	4	28	49
FSD0350SE	3.50	16	4	28	49
FSD0360SE	3.60	16	4	28	49
FSD0370SE	3.70	16	4	28	49
FSD0380SE	3.80	16	4	28	49
FSD0390SE	3.90	16	4	28	49
FSD0400SE	4.00	16	4	28	49
FSD0410SE	4.10	20	6	36	61
FSD0420SE	4.20	20	6	36	61
FSD0430SE	4.30	20	6	36	61
FSD0440SE	4.40	20	6	36	61
FSD0450SE	4.50	20	6	36	61
FSD0460SE	4.60	20	6	36	61
FSD0470SE	4.70	20	6	36	61
FSD0480SE	4.80	20	6	36	61
FSD0490SE	4.90	20	6	36	61
FSD0500SE	5.00	20	6	36	61
FSD0510SE	5.10	24	6	36	65
FSD0520SE	5.20	24	6	36	65
FSD0530SE	5.30	24	6	36	65
FSD0540SE	5.40	24	6	36	65
FSD0550SE	5.50	24	6	36	65
FSD0560SE	5.60	24	6	36	65
FSD0570SE	5.70	24	6	36	65
FSD0580SE	5.80	24	6	36	65
FSD0590SE	5.90	24	6	36	65
FSD0600SE	6.00	24	6	36	65
FSD0610SE	6.10	28	8	36	69
FSD0620SE	6.20	28	8	36	69
FSD0630SE	6.30	28	8	36	69
FSD0640SE	6.40	28	8	36	69
FSD0650SE	6.50	28	8	36	69
FSD0660SE	6.60	28	8	36	69
FSD0670SE	6.70	28	8	36	69
FSD0680SE	6.80	28	8	36	69
FSD0690SE	6.90	28	8	36	69
FSD0700SE	7.00	28	8	36	69
FSD0710SE	7.10	32	8	36	73
FSD0720SE	7.20	32	8	36	73
FSD0730SE	7.30	32	8	36	73
FSD0740SE	7.40	32	8	36	73
FSD0750SE	7.50	32	8	36	73
FSD0760SE	7.60	32	8	36	73
FSD0770SE	7.70	32	8	36	73
FSD0780SE	7.80	32	8	36	73
FSD0790SE	7.90	32	8	36	73
FSD0800SE	8.00	32	8	36	73
FSD0810SE	8.10	36	10	40	81
FSD0820SE	8.20	36	10	40	81
FSD0830SE	8.30	36	10	40	81
FSD0840SE	8.40	36	10	40	81
FSD0850SE	8.50	36	10	40	81
FSD0860SE	8.60	36	10	40	81
FSD0870SE	8.70	36	10	40	81
FSD0880SE	8.80	36	10	40	81
FSD0890SE	8.90	36	10	40	81
FSD0900SE	9.00	36	10	40	81
FSD0910SE	9.30	40	10	40	85
FSD0920SE	9.30	40	10	40	85
FSD0930SE	9.30	40	10	40	85
FSD0940SE	9.40	40	10	40	85
FSD0950SE	9.50	40	10	40	85
FSD0960SE	9.60	40	10	40	85
FSD0970SE	9.70	40	10	40	85
FSD0980SE	9.80	40	10	40	85
FSD0990SE	9.90	40	10	40	85
FSD1000SE	10.00	40	10	40	85
FSD1010SE	10.10	44	12	45	94
FSD1020SE	10.20	44	12	45	94
FSD1030SE	10.30	44	12	45	94
FSD1040SE	10.40	44	12	45	94
FSD1050SE	10.50	44	12	45	94
FSD1060SE	10.60	44	12	45	94
FSD1070SE	10.70	44	12	45	94
FSD1080SE	10.80	44	12	45	94
FSD1090SE	10.90	44	12	45	94
FSD1100SE	11.00	44	12	45	94
FSD1110SE	11.10	48	12	45	98
FSD1120SE	11.20	48	12	45	98
FSD1130SE	11.30	48	12	45	98
FSD1140SE	11.40	48	12	45	98
FSD1150SE	11.50	48	12	45	98
FSD1160SE	11.60	48	12	45	98
FSD1170SE	11.70	48	12	45	98
FSD1180SE	11.80	48	12	45	98
FSD1190SE	11.90	48	12	45	98
FSD1200SE	12.00	48	12	45	98
FSD1210SE	12.10	52	14	45	102
FSD1220SE	12.20	52	14	45	102
FSD1230SE	12.30	52	14	45	102
FSD1240SE	12.40	52	14	45	102
FSD1250SE	12.50	52	14	45	102
FSD1260SE	12.60	52	14	45	102
FSD1270SE	12.70	52	14	45	102
FSD1280SE	12.80	52	14	45	102
FSD1290SE	12.90	52	14	45	102
FSD1300SE	13.00	52	14	45	102
FSD1310SE	13.10	56	14	45	106
FSD1320SE	13.20	56	14	45	106
FSD1330SE	13.30	56	14	45	106
FSD1340SE	13.40	56	14	45	106
FSD1350SE	13.50	56	14	45	106
FSD1360SE	13.60	56	14	45	106
FSD1370SE	13.70	56	14	45	106
FSD1380SE	13.80	56	14	45	106
FSD1390SE	13.90	56	14	45	106
FSD1400SE	14.00	56	14	45	106
FSD1410SE	14.10	60	16	48	113
FSD1420SE	14.20	60	16	48	113
FSD1430SE	14.30	60	16	48	113
FSD1440SE	14.40	60	16	48	113
FSD1450SE	14.50	60	16	48	113
FSD1460SE	14.60	60	16	48	113
FSD1470SE	14.70	60	16	48	113
FSD1480SE	14.80	60	16	48	113
FSD1490SE	14.90	60	16	48	113
FSD1500SE	15.00	60	16	48	113
FSD1510SE	15.10	64	16	48	117
FSD1520SE	15.20	64	16	48	117
FSD1530SE	15.30	64	16	48	117
FSD1540SE	15.40	64	16	48	117
FSD1550SE	15.50	64	16	48	117
FSD1560SE	15.60	64	16	48	117
FSD1570SE	15.70	64	16	48	117
FSD1580SE	15.80	64	16	48	117
FSD1590SE	15.90	64	16	48	117
FSD1600SE	16.00	64	16	48	117
FSD1610SE	16.10	68	18	48	121
FSD1620SE	16.20	68	18	48	121
FSD1630SE	16.30	68	18	48	121
FSD1640SE	16.40	68	18	48	121
FSD1650SE	16.50	68	18	48	121
FSD1660SE	16.60	68	18	48	121
FSD1670SE	16.70	68	18	48	121
FSD1680SE	16.80	68	18	48	121
FSD1690SE	16.90	68	18	48	121
FSD1700SE	17.00	68	18	48	121
FSD1710SE	17.10	72	18	48	125
FSD1720SE	17.20	72	18	48	125
FSD1730SE	17.30	72	18	48	125
FSD1740SE	17.40	72	18	48	125
FSD1750SE	17.50	72	18	48	125
FSD1760SE	17.60	72	18	48	125
FSD1770SE	17.70	72	18	48	125
FSD1780SE	17.80	72	18	48	125
FSD1790SE	17.90	72	18	48	125
FSD1800SE	18.00	72	18	48	125
FSD1810SE	18.10	76	20	50	131
FSD1820SE	18.20	76	20	50	131
FSD1830SE	18.30	76	20	50	131
FSD1840SE	18.40	76	20	50	131
FSD1850SE	18.50	76	20	50	131
FSD1860SE	18.60	76	20	50	131
FSD1870SE	18.70	76	20	50	131
FSD1880SE	18.80	76	20	50	131
FSD1890SE	18.90	76	20	50	131
FSD1900SE	19.00	76	20	50	131
FSD1910SE	19.10	80	20	50	135
FSD1920SE	19.20	80	20	50	135
FSD1930SE	19.30	80	20	50	135
FSD1940SE	19.40	80	20	50	135
FSD1950SE	19.50	80	20	50	135
FSD1960SE	19.60	80	20	50	135
FSD1970SE	19.70	80	20	50	135
FSD1980SE	19.80	80	20	50	135
FSD1990SE	19.90	80	20	50	135
FSD2000SE	20.00	80	20	50	135
